500 Gallon Casale Stainless Jacketed Scraper Agitated Kettle, Cone Bottom

Add to Favorites

Description

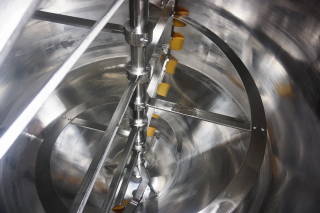

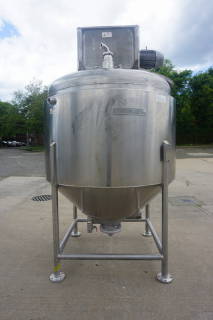

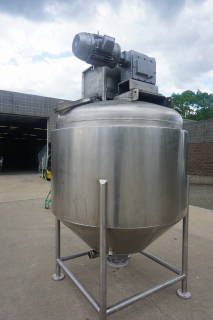

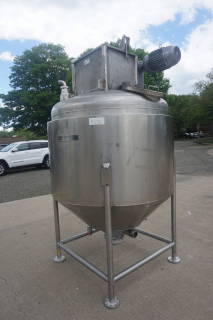

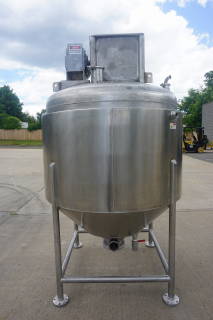

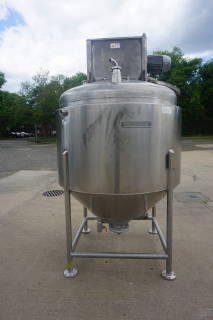

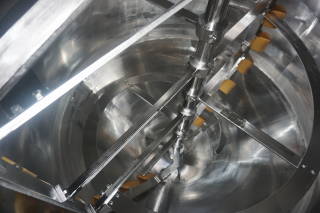

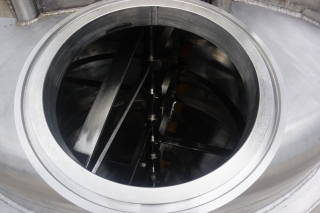

1-Used Casale Industries Approximately 500 Gallon Stainless Steel Jacketed Scraper Agitated Mix Kettle/Reactor.  Interior diameter approximately 56 In. X 40 In. deep on straight side, plus cone bottom.  With dished top head, vessel has scraped surface agitation with cross paddles and flight, and is driven by 5HP 3/60/230-460 Volt TEFC motor.  With offset 14 In. diameter top manway, kettle is on legs and equipped with both 3 In. diameter bottom outlet with hand operated valve and 4 inch diameter bottom outlet with air operated valve. (Stock #8376)

Specifications

  • Capacity/Model: 500 Gallon
  • Stock #: 8376
