300 Gallon Mueller 316 Stainless Jacketed Vacuum Agitated Reactor

Add to Favorites

Description

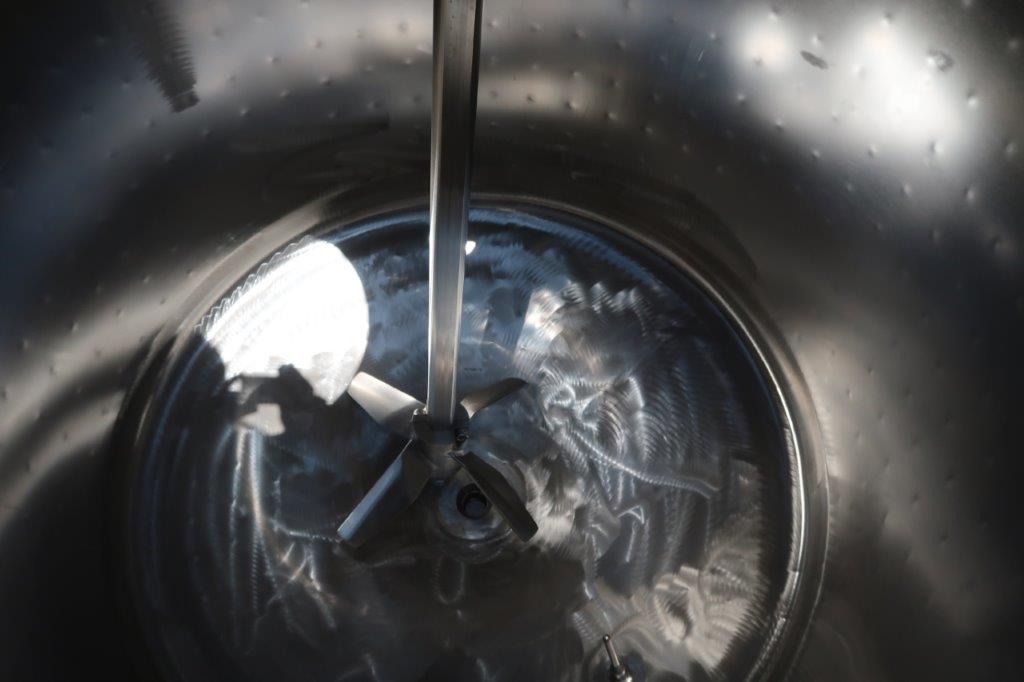

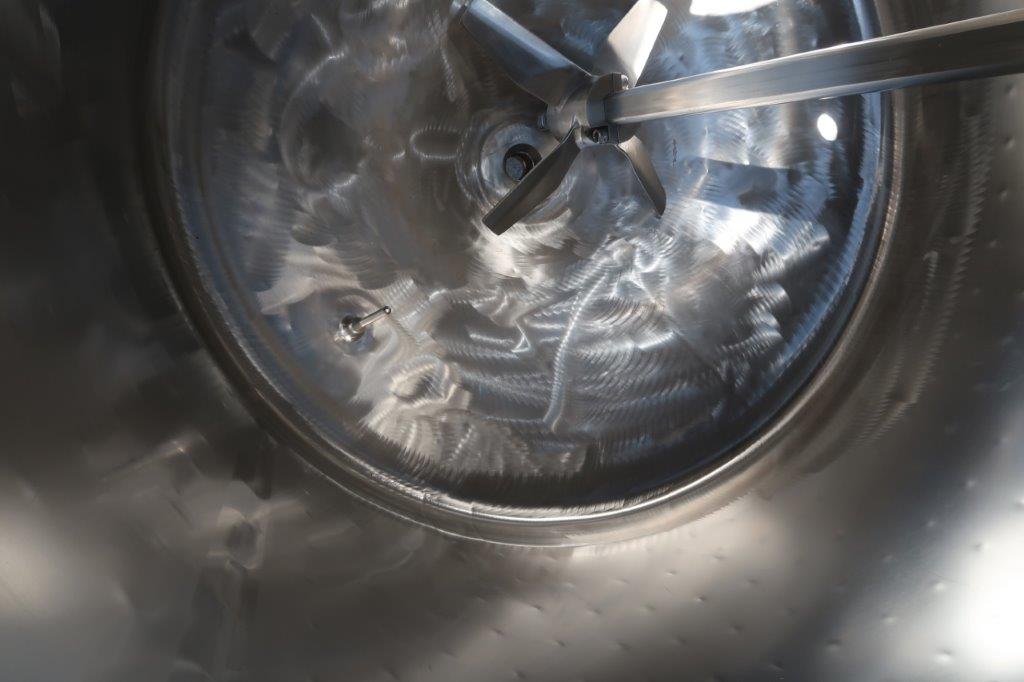

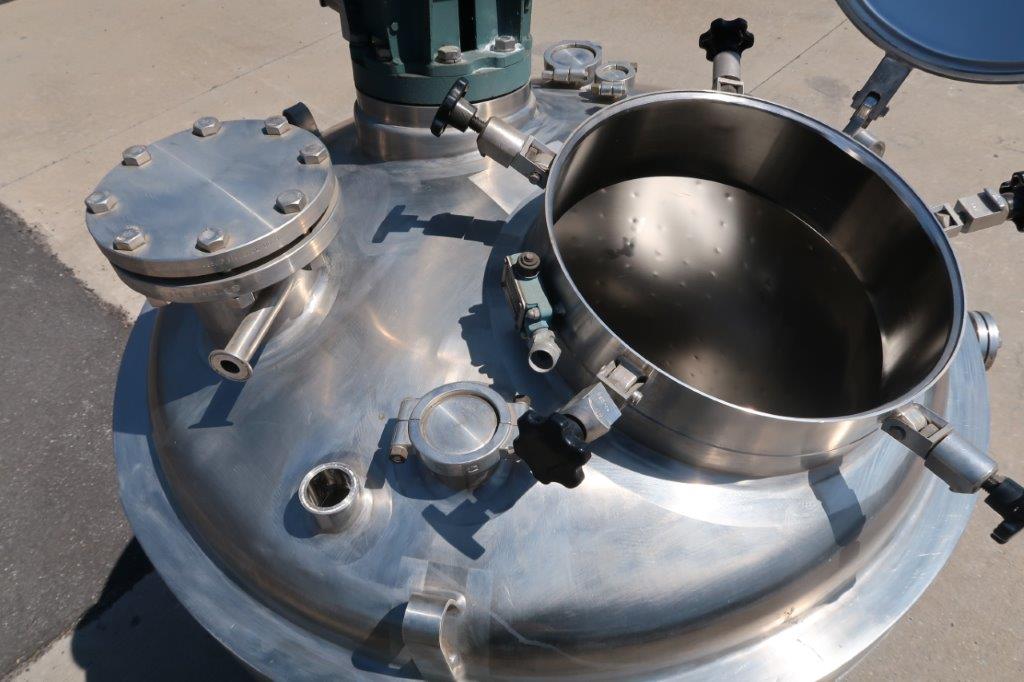

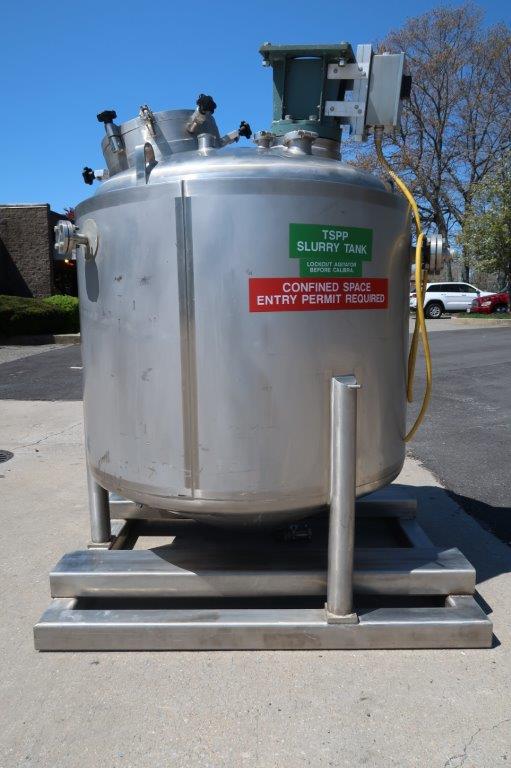

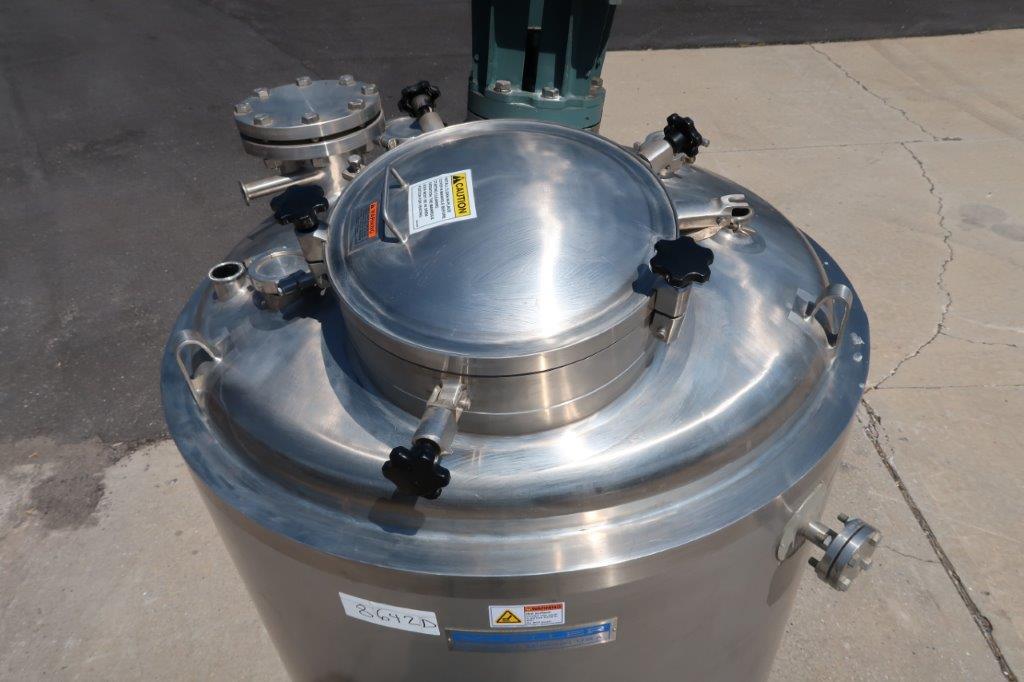

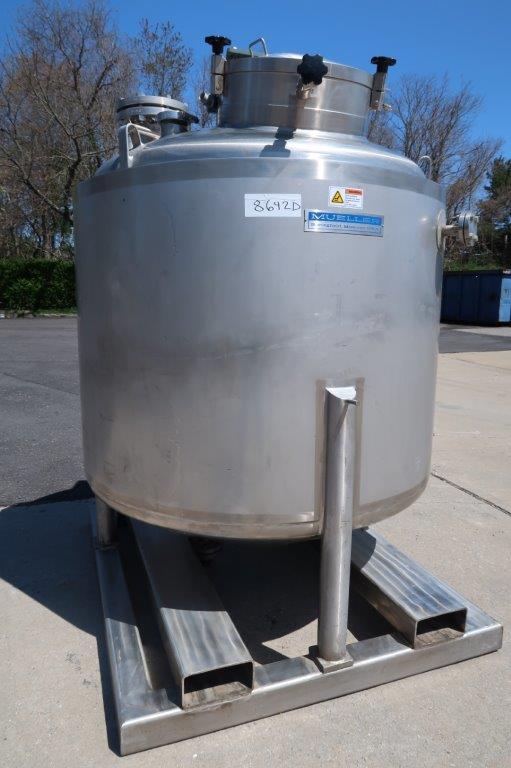

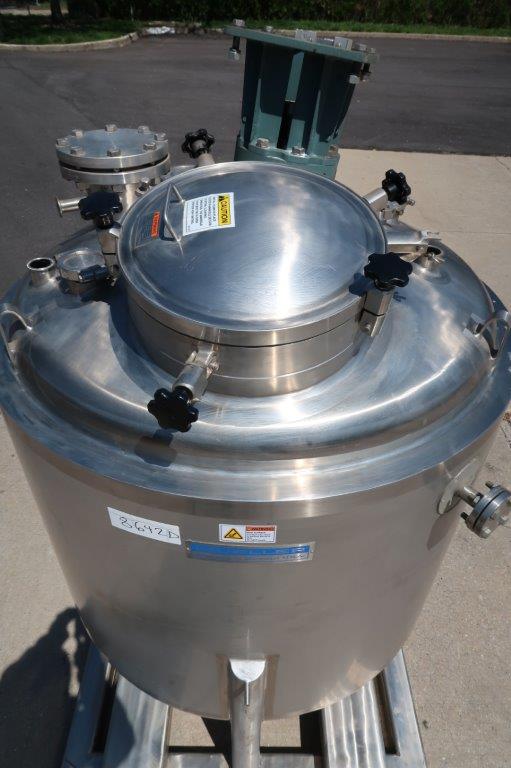

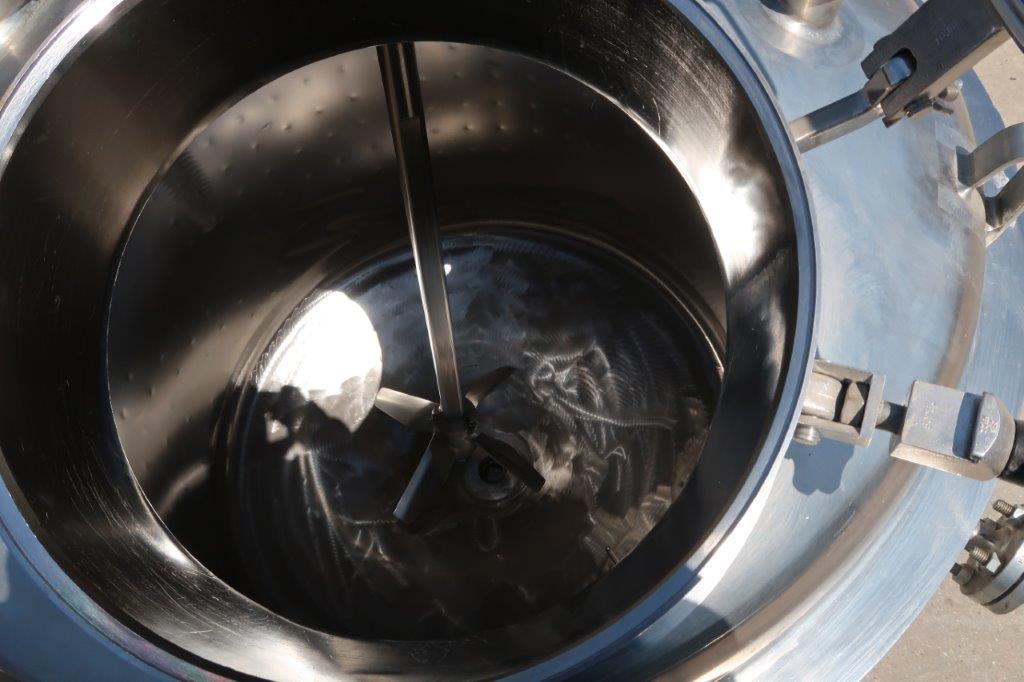

1 – Used Paul Mueller 300 Gallon Type 316 Stainless Steel Jacketed Vacuum Reactor. Interior dimensions approximately 45 In. diameter X 44In. deep plus dish top head and cone bottom head. Vessel rated internally 15 PSI/Full Vacuum at 300 degrees F., and is jacketed for 30 PSI @ 300 degree F., National Board number 24164, code-stamped.  Vessel has dimple jacket covered with stainless steel shroud, and is mounted on stainless base that is fork lift accessible.  With top off-center 18 In. diameter manway with hinged lid and quick opening bolts, top also has approximately 8 assorted additional top openings. Equipped with 26 In. wide heavy duty pitched bladed agitator (requires motor), reactor has approximately 3 In. diameter center bottom outlet. (Stock # 8642D)



Specifications

  • Capacity/Model: 300 Gallon
  • Brand: Paul Mueller
  • Stock #: 8642D
