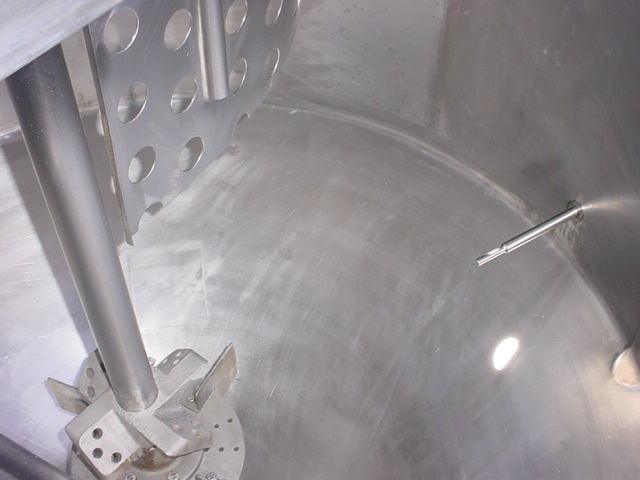

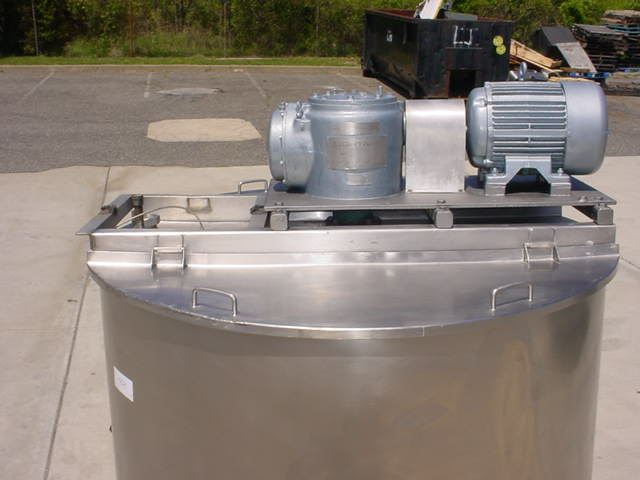

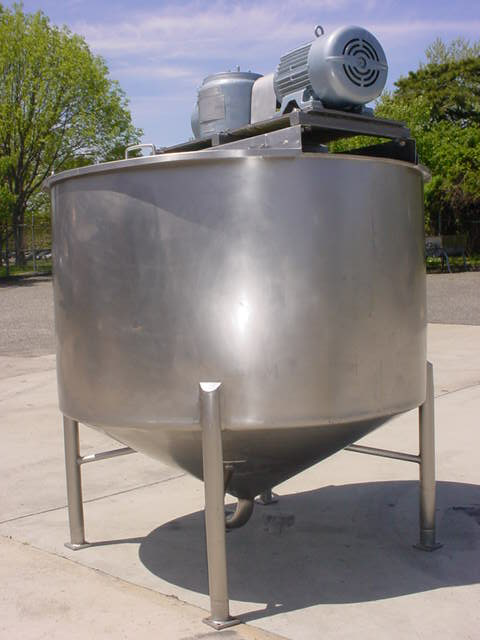

1-Used 800 gallon capacity stainless steel vertical mix tank. Dimensions approx. 68″ diameter x 39″ on straight side plus approx. 20″ deep cone bottom with 3″ diameter center bottom outlet. Equipped with approx. 16″ diameter turbine agitator with straight and pitched blades driven by top mounted lightnin 15 hp 3/60/230-460 volt motor and reducer. Also equipped with internal stainless steel perforated stationary baffle, tank has stainless steel hinged lids and 29″ high stainless steel legs.
(
