600 Gallon Type 316 Stainless Mixing Tank, Cone Bottom

Add to Favorites

Description

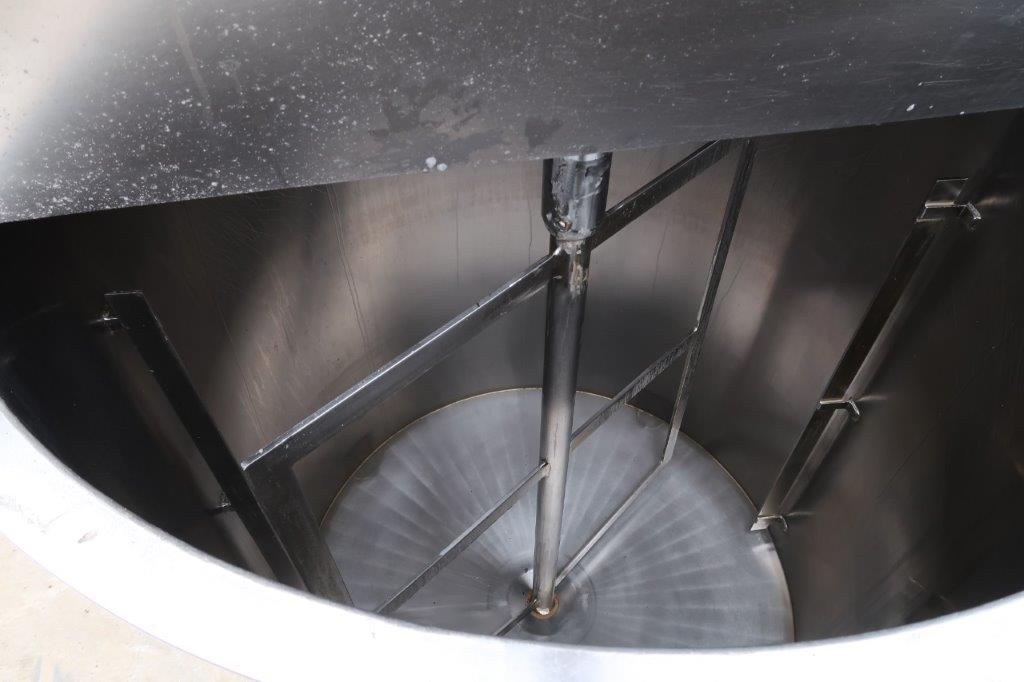

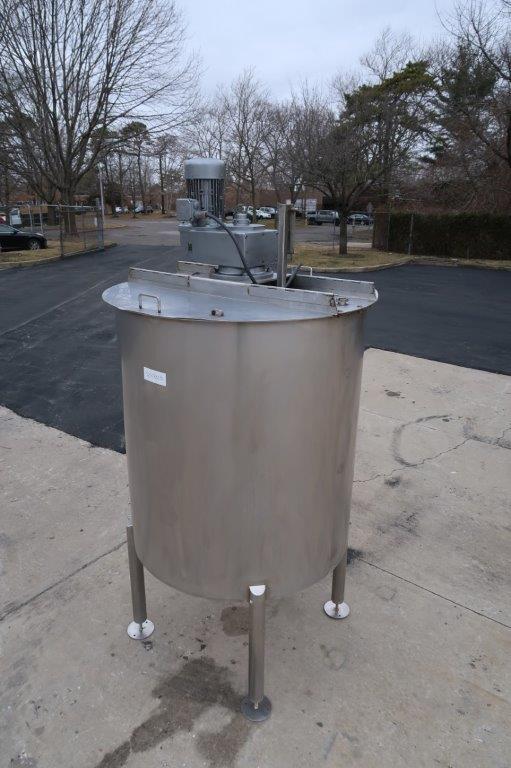

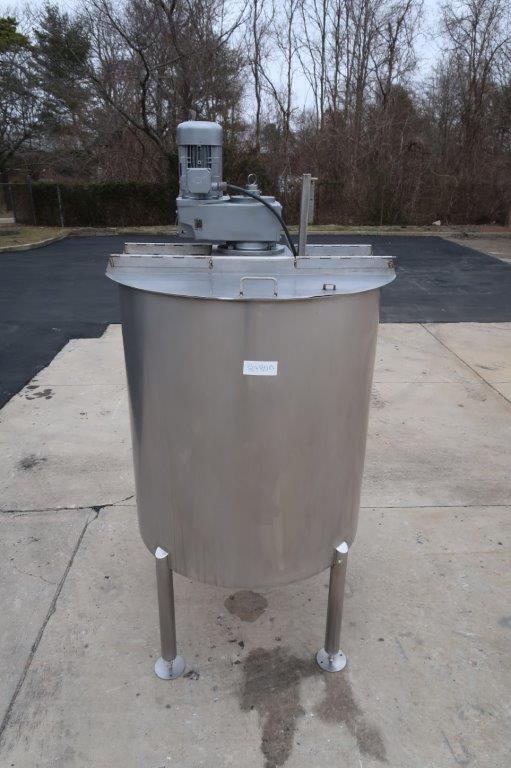

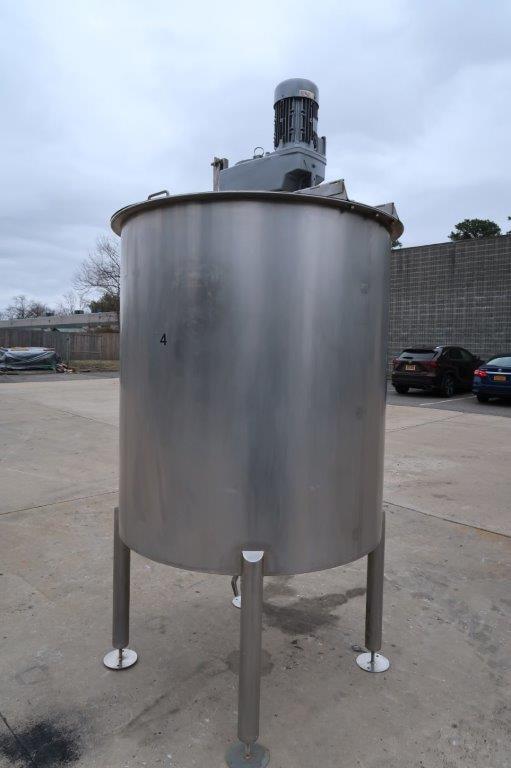

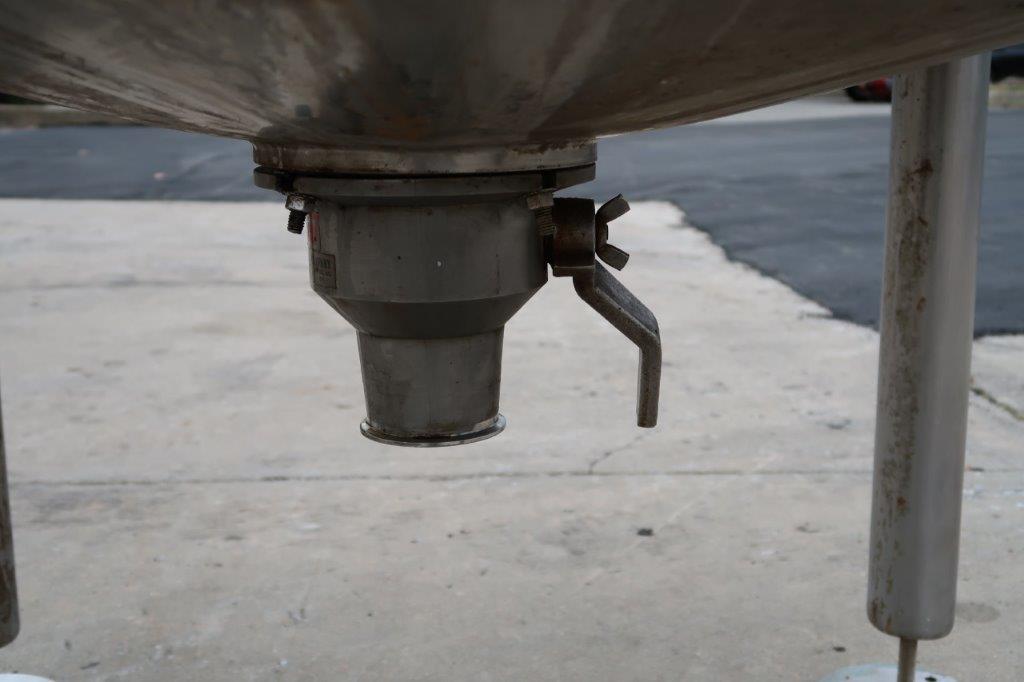

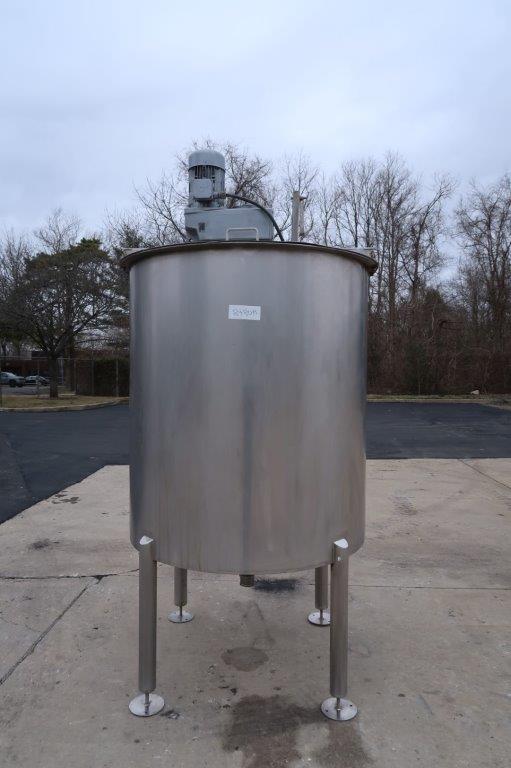

1-Used Approximately 600 Gallon Type 316 Stainless Steel Vertical Cone Bottom Mix Tank. Dimensions approximately 54 In. diameter X 60 In. on straight side plus cone bottom head. Equipped with Frame type sweep agitator driven by top mounted Nord 5HP, 3/60/208-230/460 Volt motor/reducer, tank also has two stationary interior baffles. With approximately 3 In. diameter center bottom outlet with Lee “Fluid-Flow” valve, tank has sectional stainless steel hinged lid.  Mounted on approximately 33 In. high stainless steel legs, tank was last used in food industry. (Stock# 8480B)

Specifications

  • Capacity/Model: 600 Gallon
  • Stock #: 8480B
