500 Gallon Mueller Cone Bottom Mix Tank, 5 HP

Add to Favorites

Description

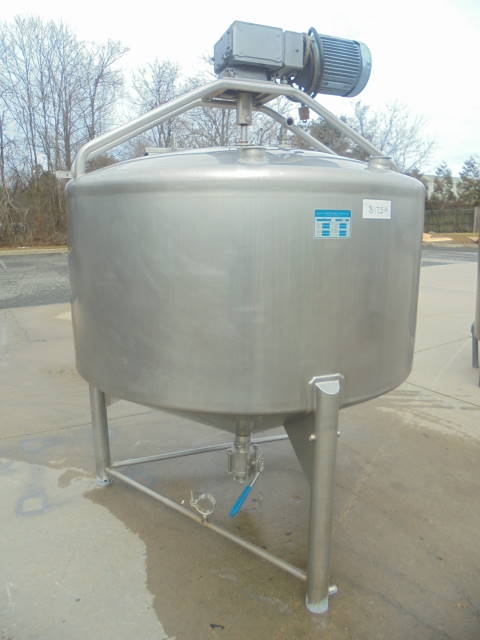

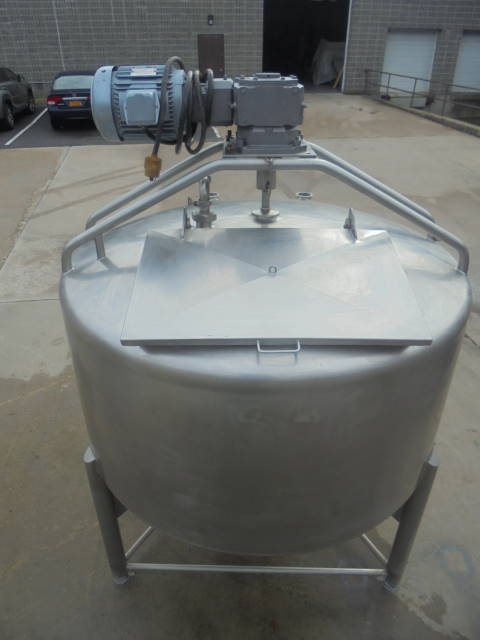

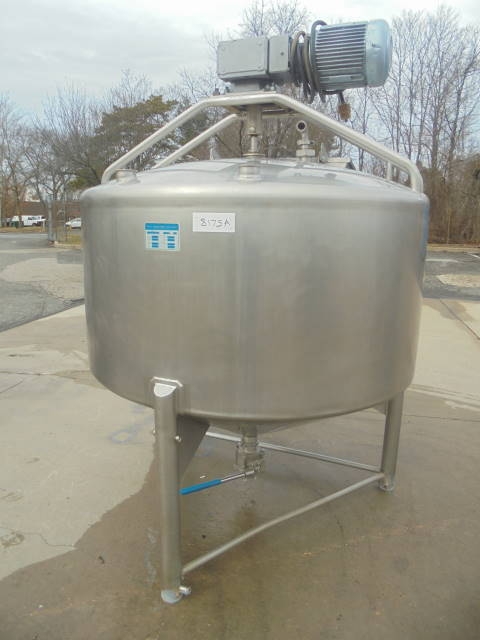

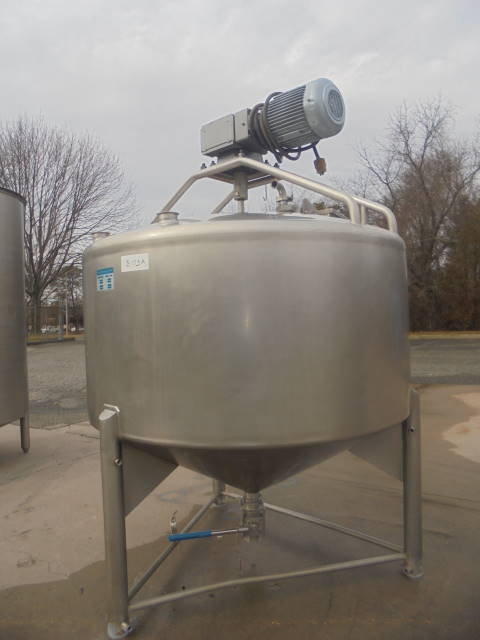

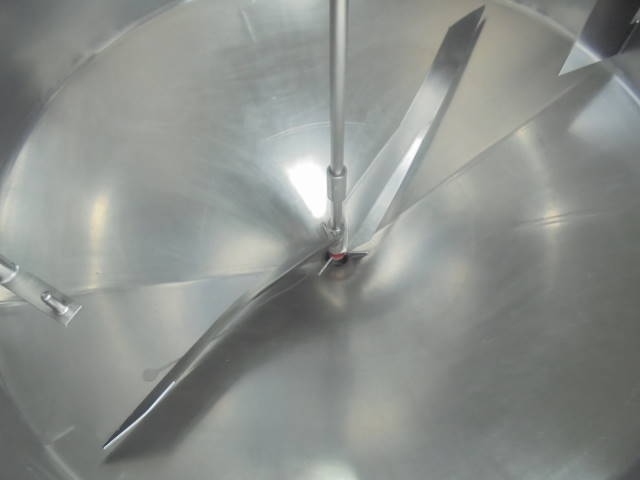

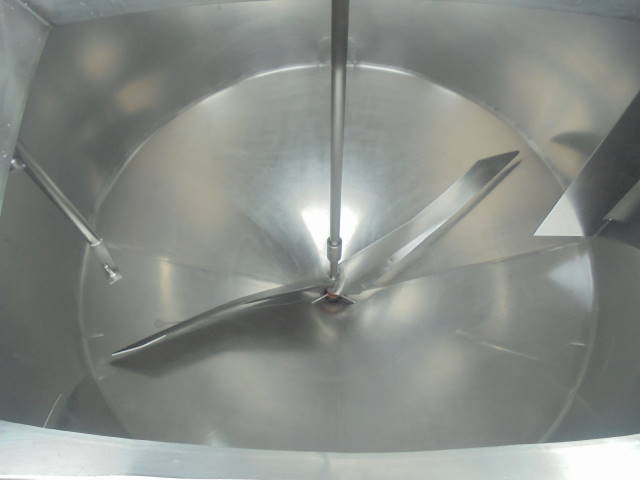

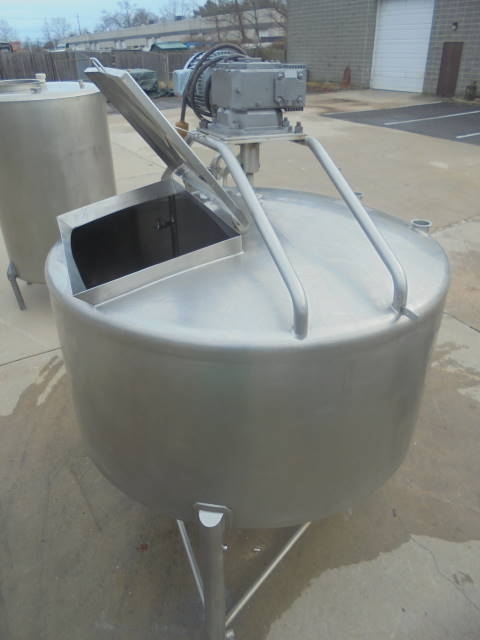

1-Used Mueller Approx. 500 Gallon Cone Bottom Mix Tank.  Tank dimensions approx. 64 in. interior diameter (66 in. outside diameter) X 32 in. on straight side plus cone bottom.  Equipped with sweep agitator driven by 5 HP/2.5 HP 3/60/230 volt two-speed motor.  Tank also has stationary baffle and stabilizing bearing for agitator shaft.  With dished top, Tank on approx. 36 in . high stainless steel legs and has approx. 3 in. diameter tri-clamp center bottom outlet with valve.  Top head has rectangular hatch with lid measuring approx. 27 in. wide X 34 in. long.  (Stock #8175A)

Specifications

  • Capacity/Model: 500 Gallon
  • Brand: MUELLER
  • Stock #: 8175A
