500 Gallon DCI mix tank, Type 316 Stainless

Add to Favorites

Description

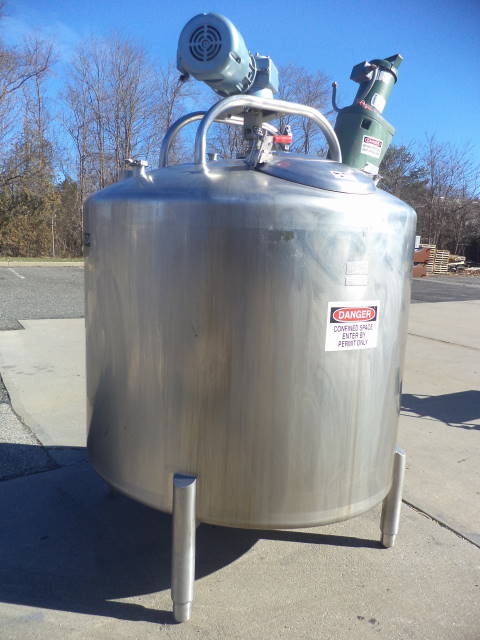

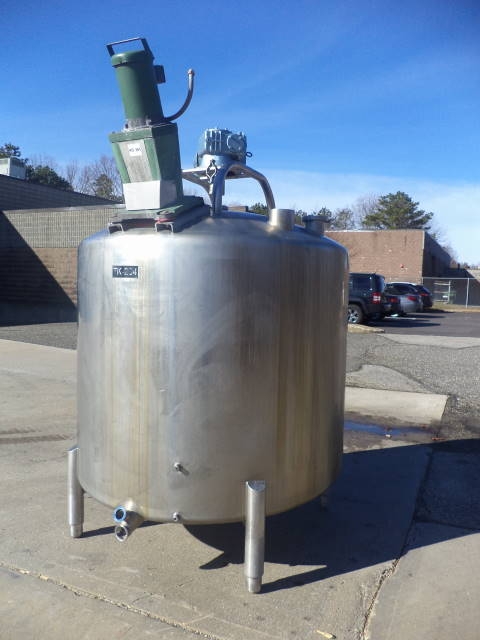

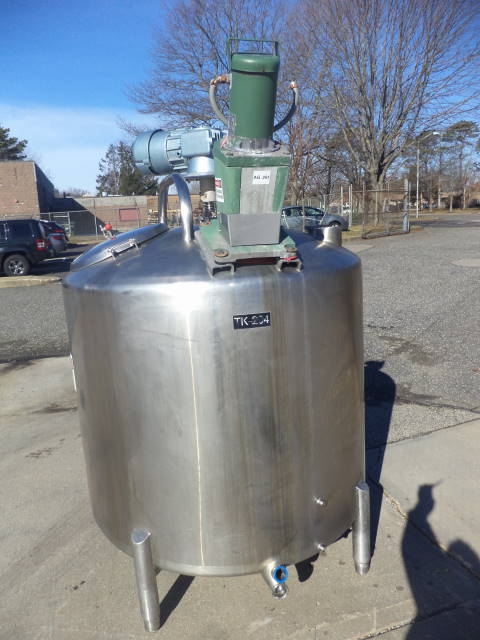

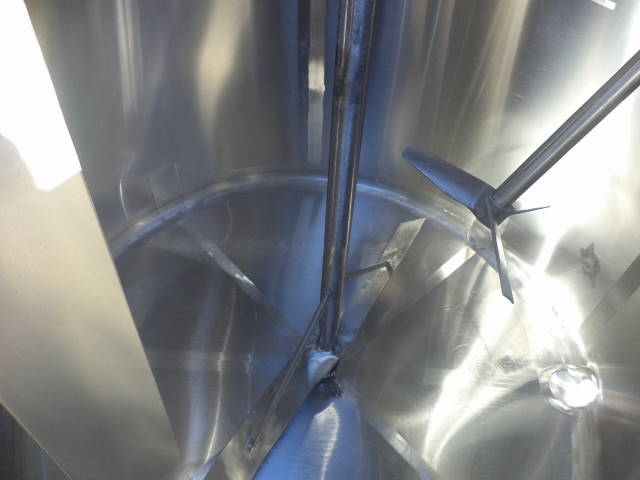

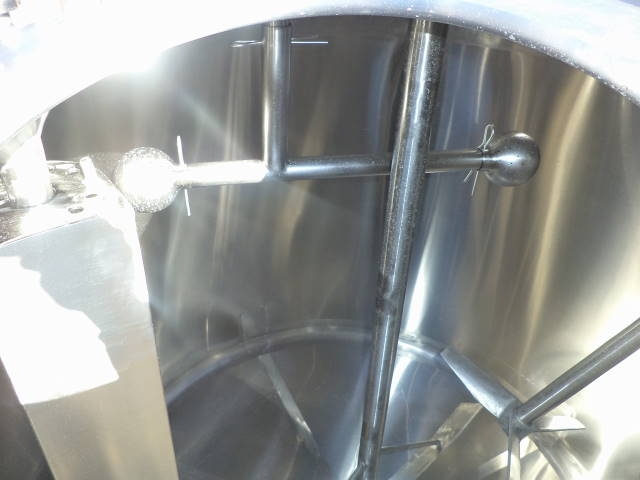

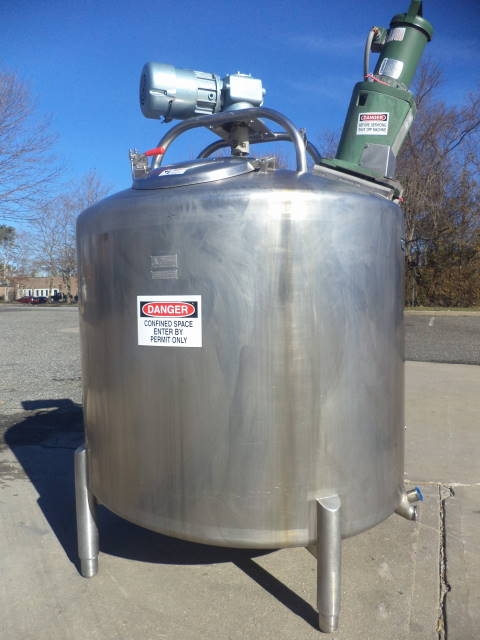

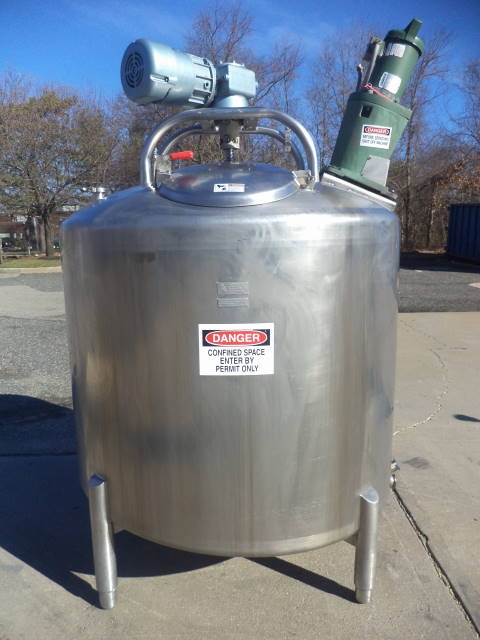

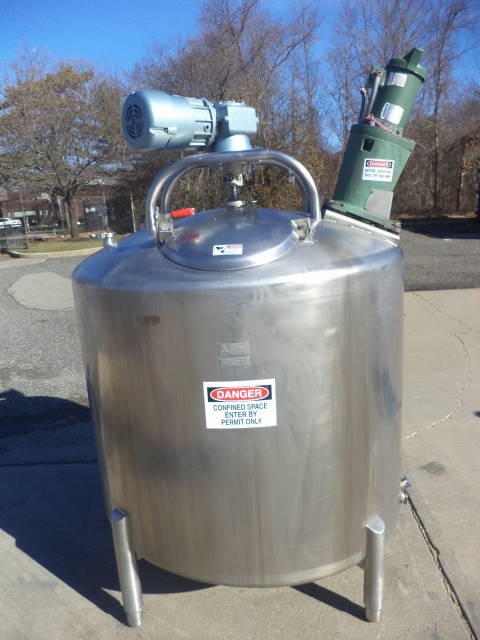

1-Used DCI 500 Gallon Type 316 Stainless Steel Vertical Mix Tank, S/N 82D-28699-B.  Dimensions approx. 60 inch diameter by 48 inch on straight side plus sloped bottom.  Equipped with dished top with 18 inch diameter off-center manway with hinged lid and four assorted additional smaller openings. With sweep agitator driven by 1HP, 3/60/230-460 Volt motor as well as 18 inch wide diameter pitched blade agitator driven by Lightnin 2.3HP 3/60/208-230/460 Volt motor.  Last operated in food production, tank has dual CIP sprayballs and stationary baffle.  On approx. 16 inch high stainless steel legs, there is a dual tri-clamp discharge with 3 inch diameter and 2 inch diameter, respectively. (Stock #7972)

Specifications

  • Capacity/Model: 500 Gallon
  • Brand: DCI
  • Stock #: 7972
