600 Gallon Mueller Scrape Surface Cone Bottom Mix Kettle, 90PSI Jacket

Add to Favorites

Description

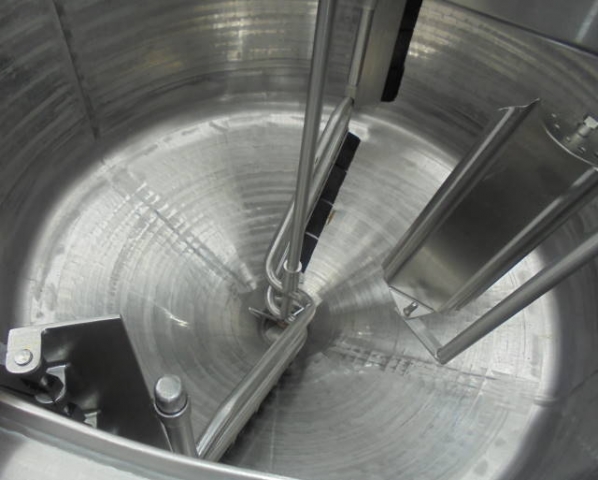

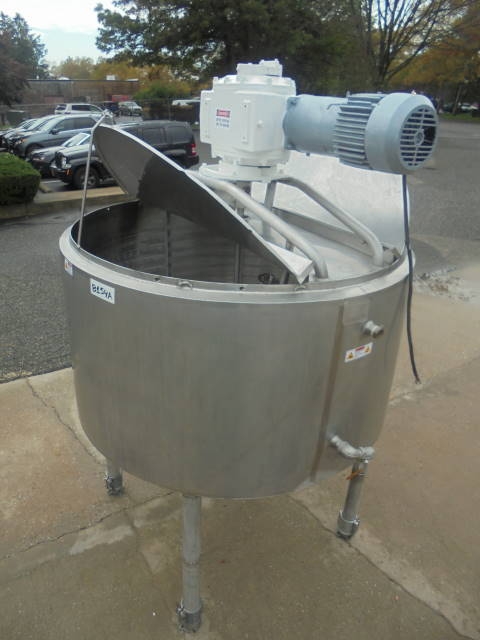

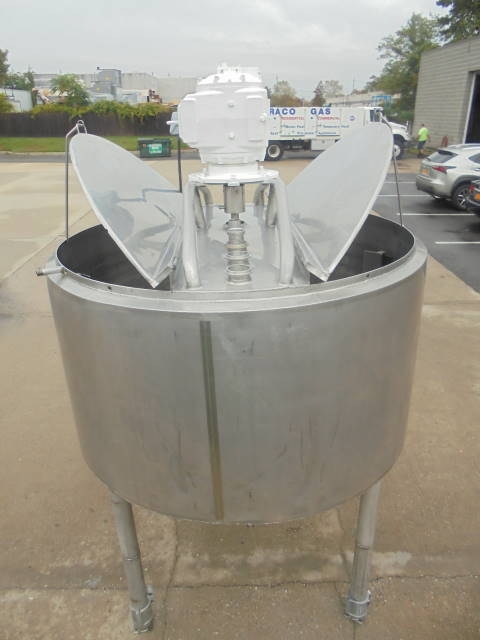

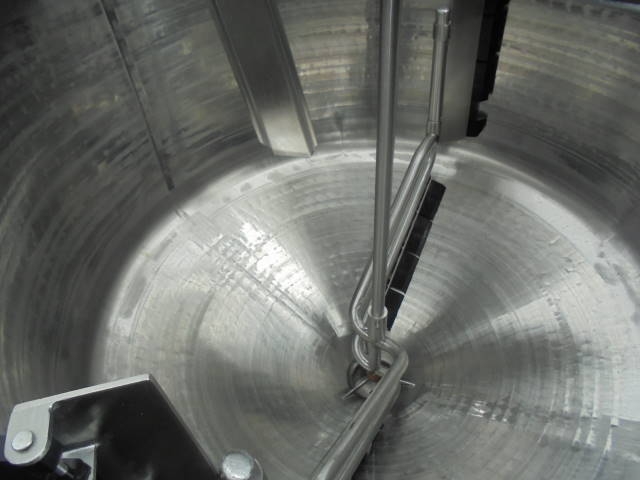

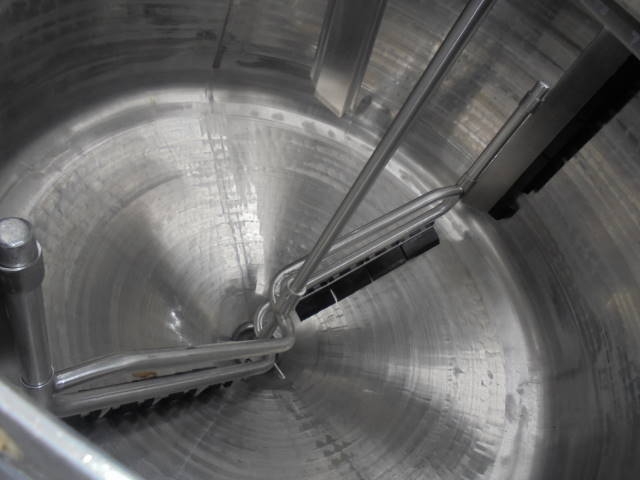

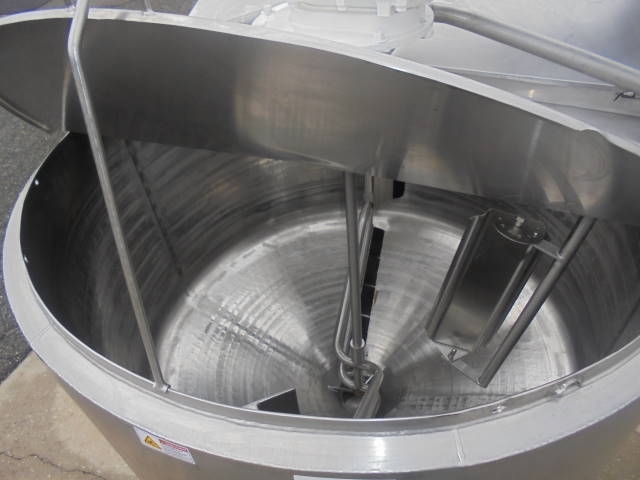

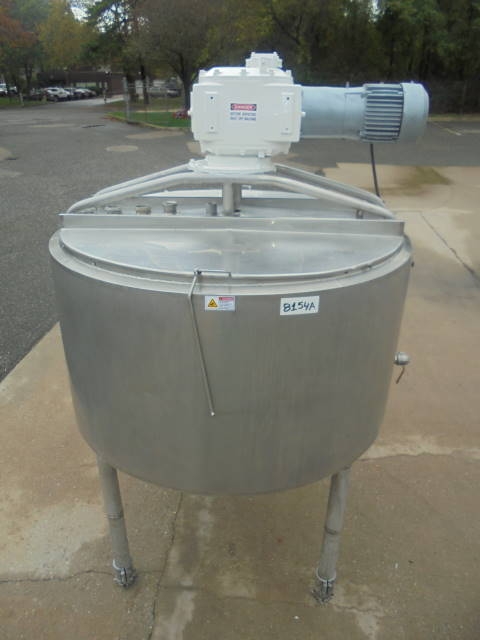

1-Used Mueller Approx. 600 Gallon Stainless Steel Jacketed Cone Bottom Scrape Surface Agitated Kettle, S/N 118949-2.  Interior dimensions approx. 66 In. diameter x 38 In. on the straight side, plus approx. 17 In. deep cone bottom.  Jacketed rated 90 PSI at 400 Deg. F, National Board Number 1892, code stamped.  Equipped with scrape surface agitation for sides and bottom head, agitator driven by 7.5HP, 3/60/230-460 Volt motor.  On approx. 42 In. high stainless legs, vessel has center bottom discharge outlet.  Equipped with interior stainless steel baffle vessel has hinged lids.  (Stock #8154A)

Specifications

  • Capacity/Model: 600 Gallon
  • Brand: MUELLER
  • Stock #: 8154A
