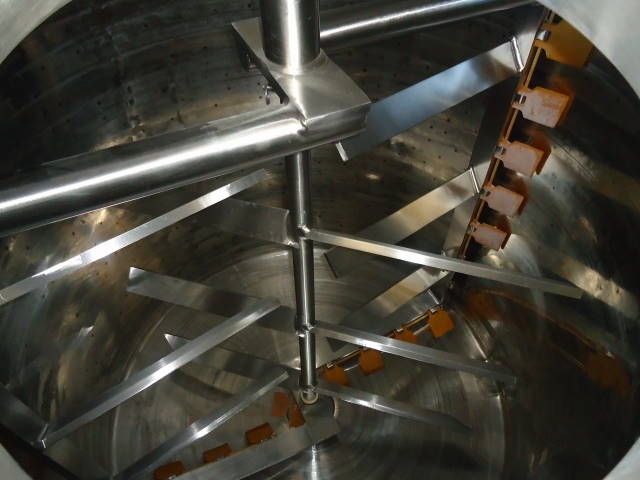

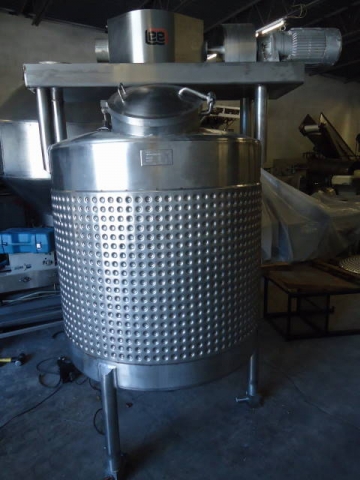

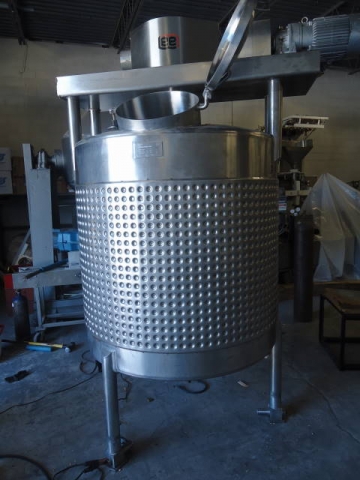

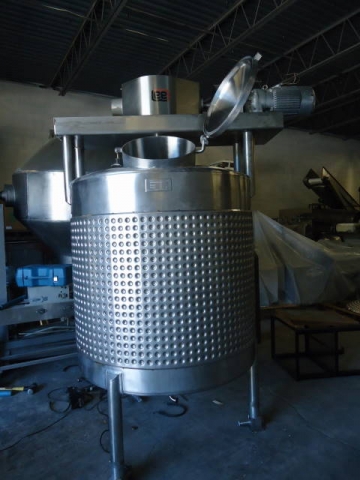

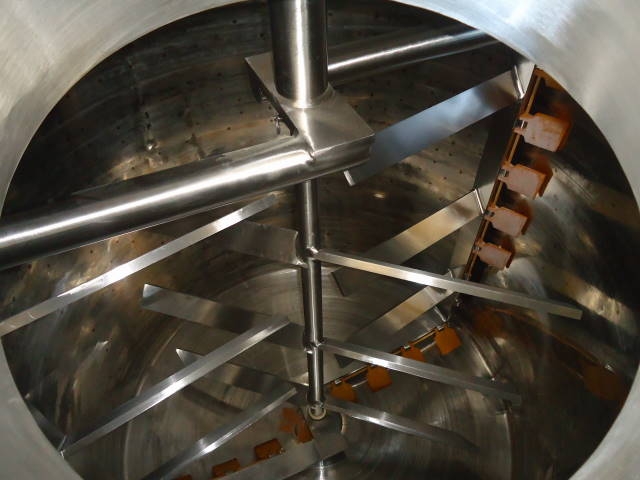

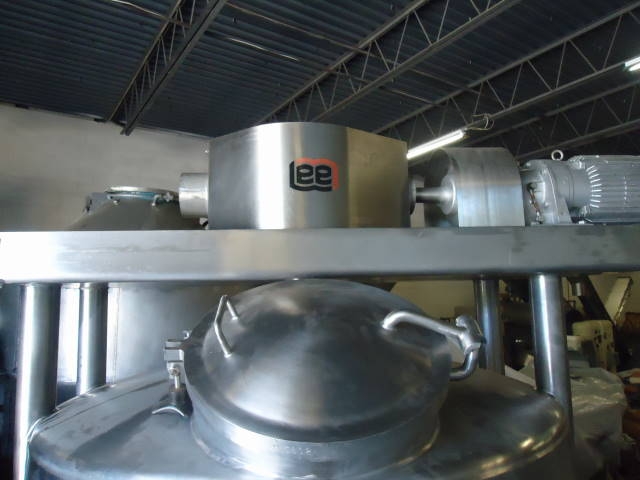

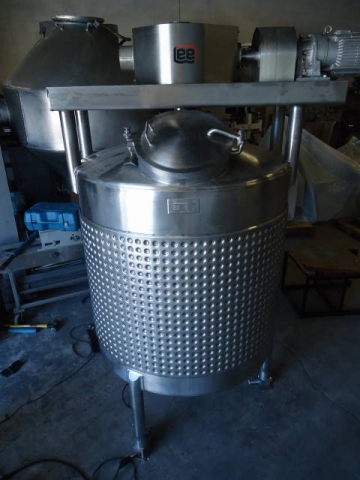

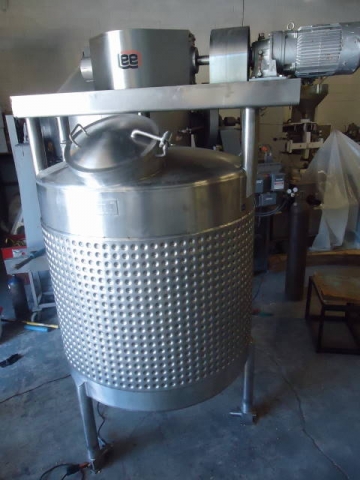

1-Used lee 550 gallon type 316 stainless steel double motion dimple jacketed mixing kettle/tank, s/n b5832a. Dimensions approx. 56 inches diameter x 57 inches on the straight side plus dished top and bottom heads. With double motion scraper agitator driven by 10 hp 3/60/230-460 volt motor. Dished top head has approx. 19 inch diameter manway with hinged lid, as well as four (4) additional smaller top inlets. On stainless steel tubular legs, vessel has lee “fluid flow” discharge valve with tri-clamp discharge. (stock #7495b)
(
