500 Gallon St. Regis/CP Stainless Jacketed Scraped Surface Kettle, Cone Bottom

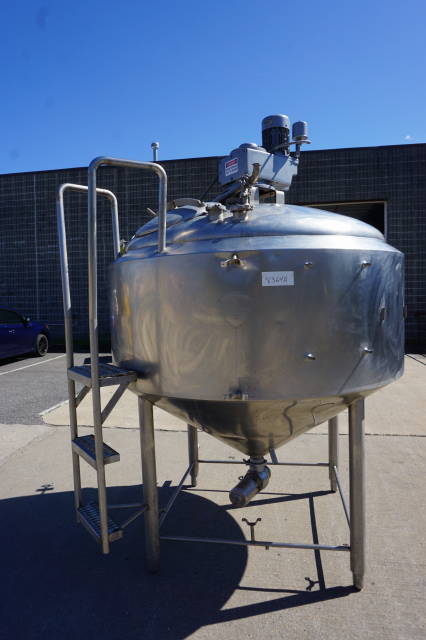

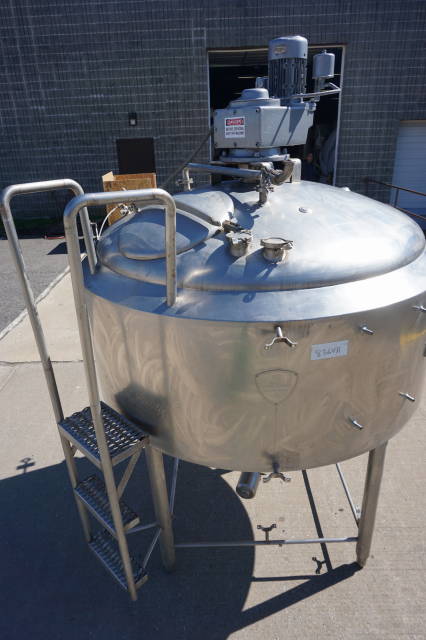

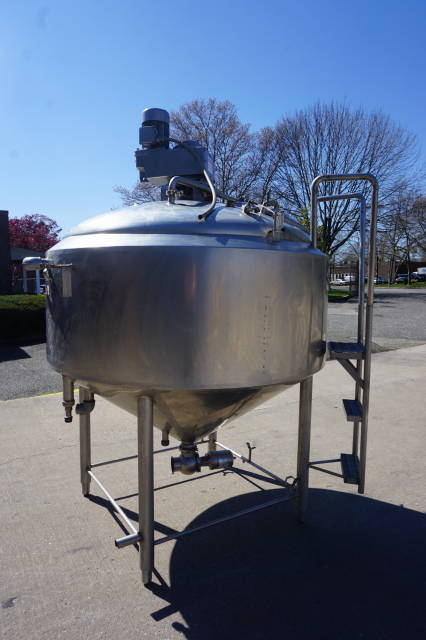

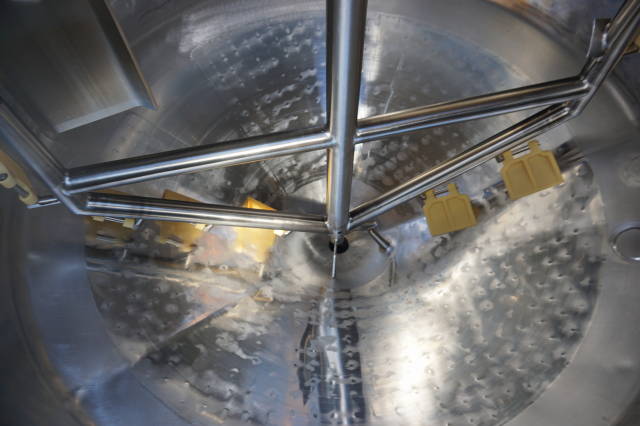

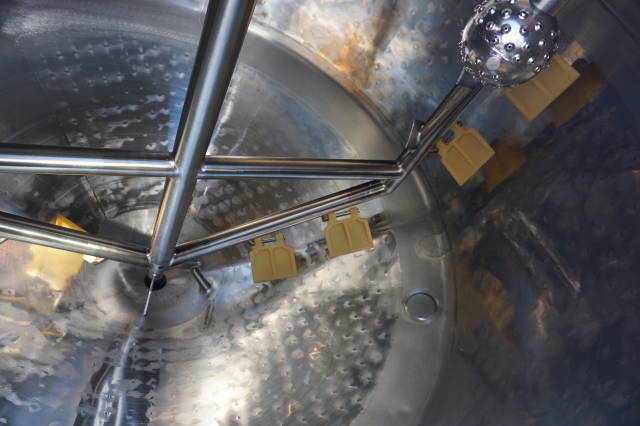

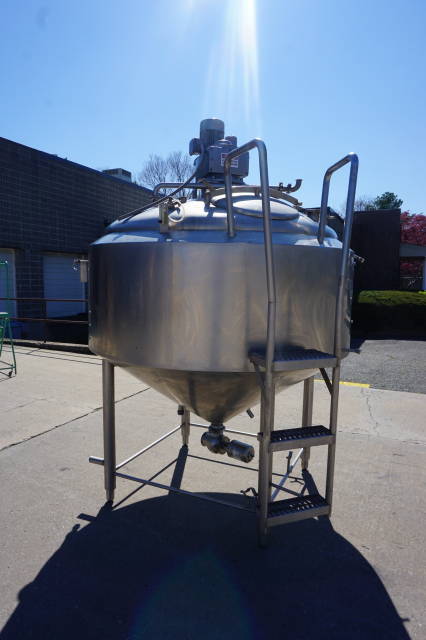

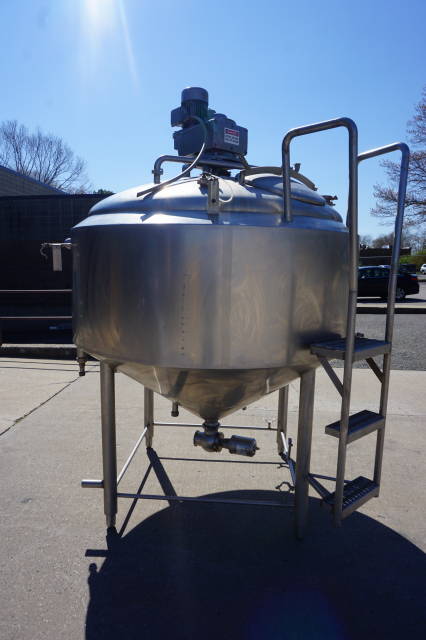

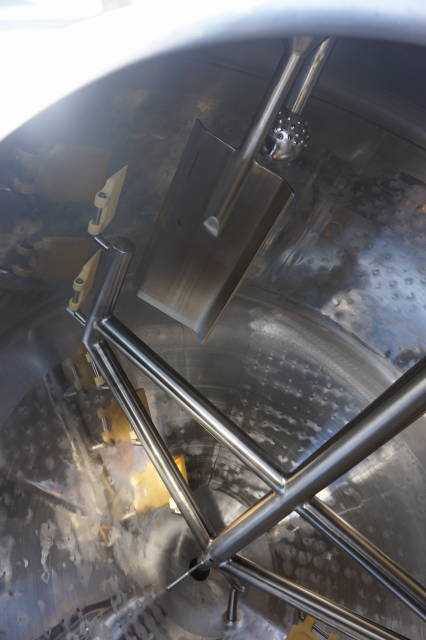

1-Used St. Regis/CP Approx. 500 Gallon Capacity Stainless Steel Jacketed Scraped Surface Cone Bottom Mixing Kettle/Tank, Serial Number 9932. Jacket rated 50 PSI, Vessel is equipped with dished top head and cone bottom head, and has approx. dimensions of 66 In. inside diameter X 30 In. on straight side, plus approx. 20 In. deep cone bottom. With scraped surface agitation for both sides and bottom of vessel, agitation driven by Nord 5HP, 3/60/230-460 Volt motor and gearbox. Also equipped with stationary baffle and C.I.P. spray ball, there is an approx. 3 In. diameter center bottom discharge outlet with pneumatic discharge valve.  With 18 In. diameter off-center top manway with hinged lid, there are also approx. six assorted top inlets. On 42 In. high stainless legs, there is a side mounted stainless ladder. Last used in food production.  (Stock#8364A)


  • Capacity/Model: 500 GAL.
  • Brand: St. Regis/CP
  • Stock #: 8364A
