500 Gallon Schebler Stainless Steel Jacketed Agitated Tank/Kettle, Electric Heat

Add to Favorites

Description

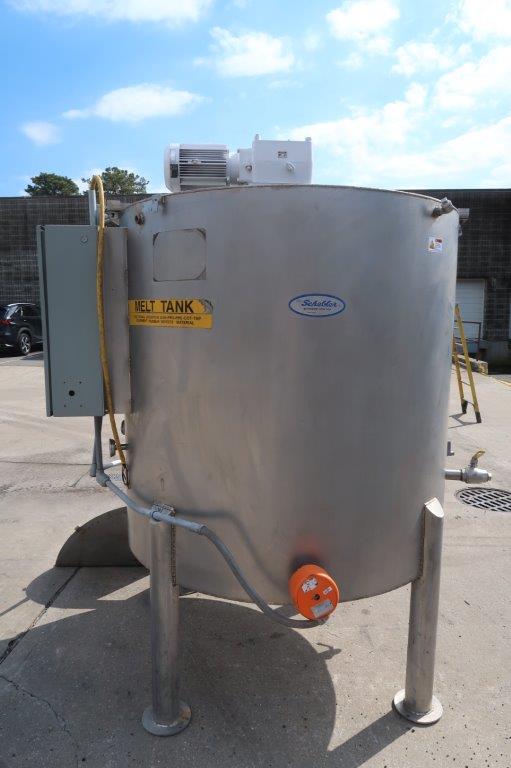

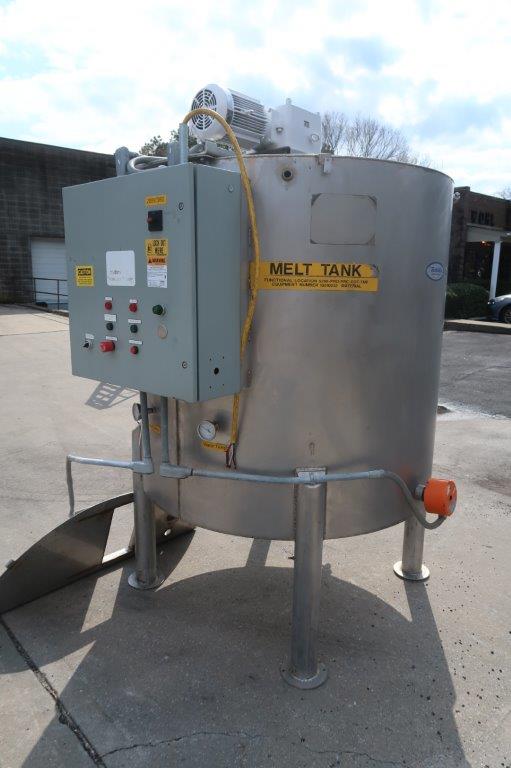

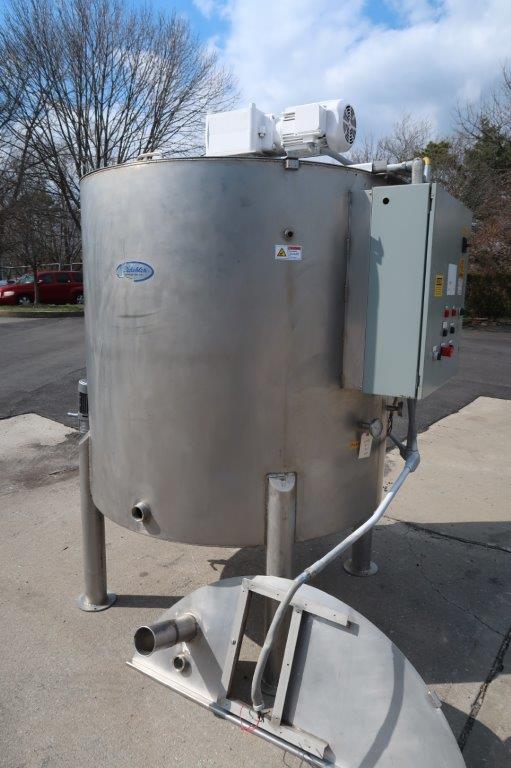

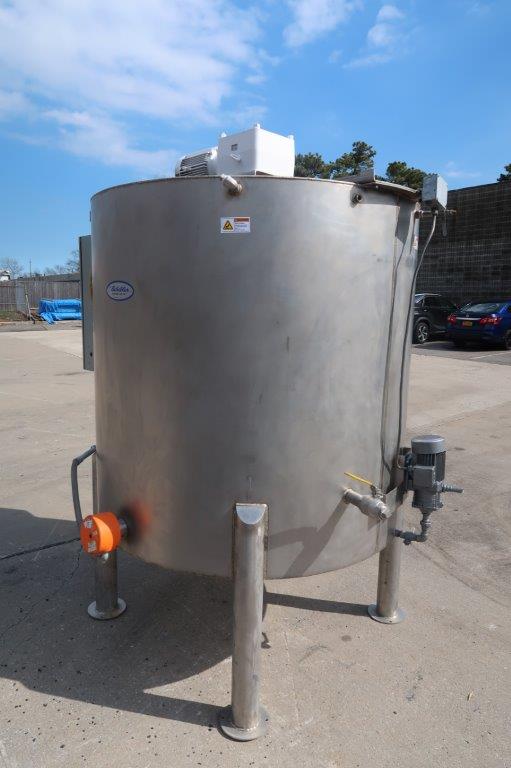

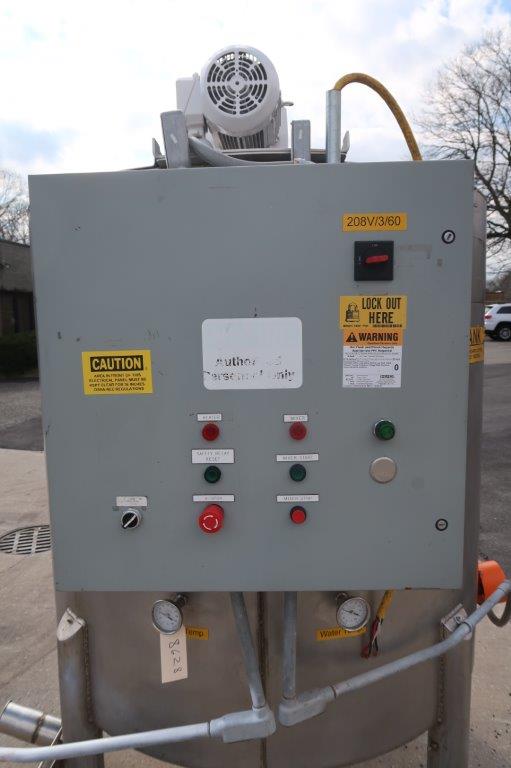

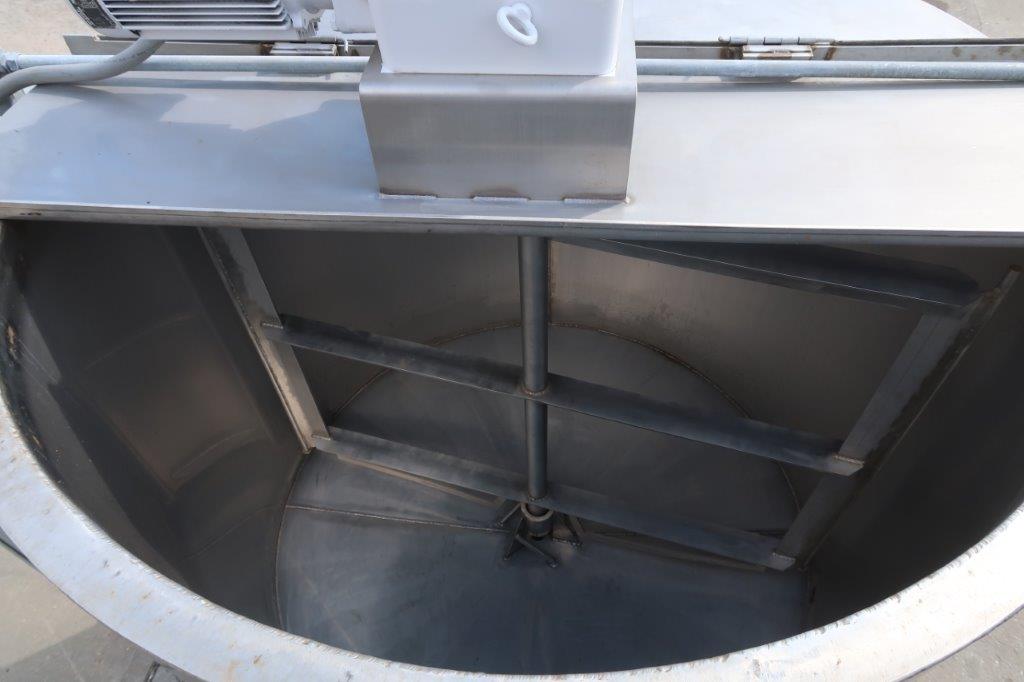

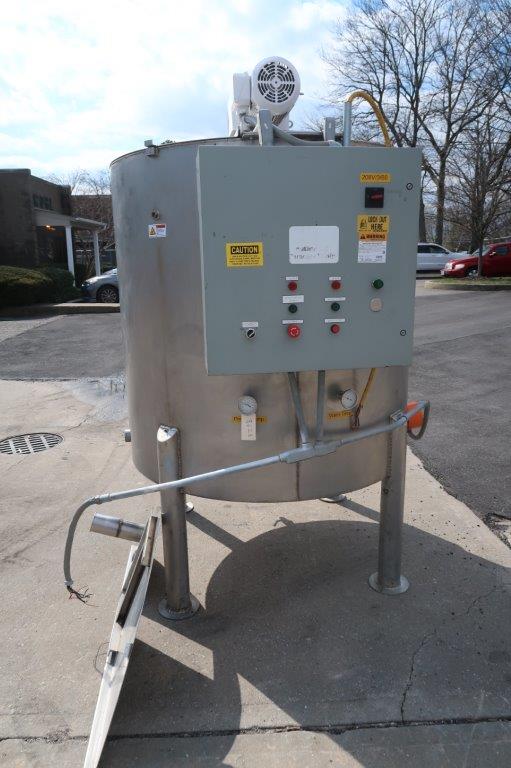

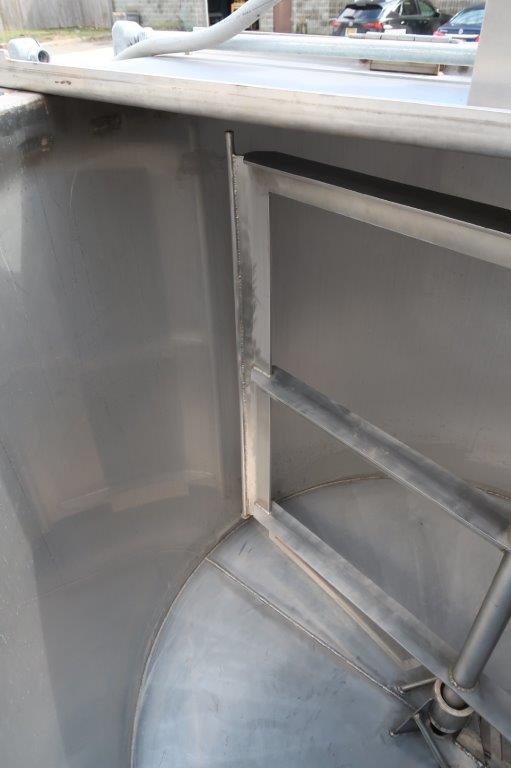

1-Used Schebler Approx. 500 gallon Stainless Steel Jacketed Mix Tank, Serial Number 7009.  Interior dimensions approximately 58 In. Diameter X 48 In. Deep. Equipped with frame type agitator, capable of accepting scraper blades,  agitation is driven by 5 HP, 3/60/220-440 Volt motor and gearbox.  Equipped with motorized water pump and Ogden immersion heater for electric heating of vessel,  unit is on stainless steel legs providing for approximately 24 In. under-clearance. With bottom center outlet with approximately 2 In. Diameter Tri-Clamp outlet with hand operated discharge valve.  With stainless hinged lids, there is an attached starter box.  Last used in the food industry. (Stock# 8628 )

Specifications

  • Capacity/Model: 500 GAL.
  • Brand: Schebler
  • Stock #: 8628
