500 Gallon DCI 316 Dimpled Jacketed Stainless Steel Mix Tank

Add to Favorites

Description

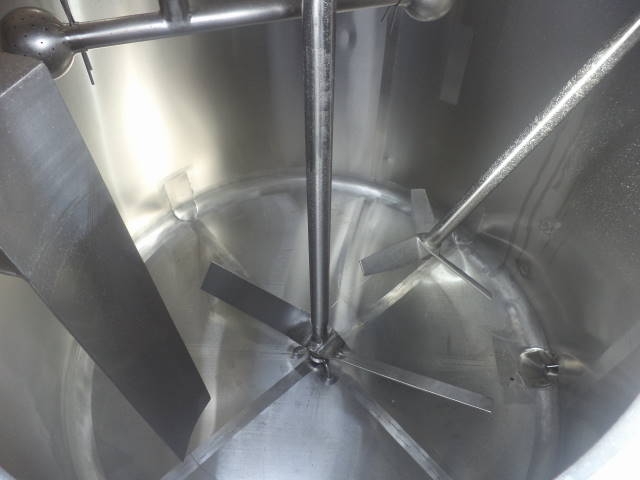

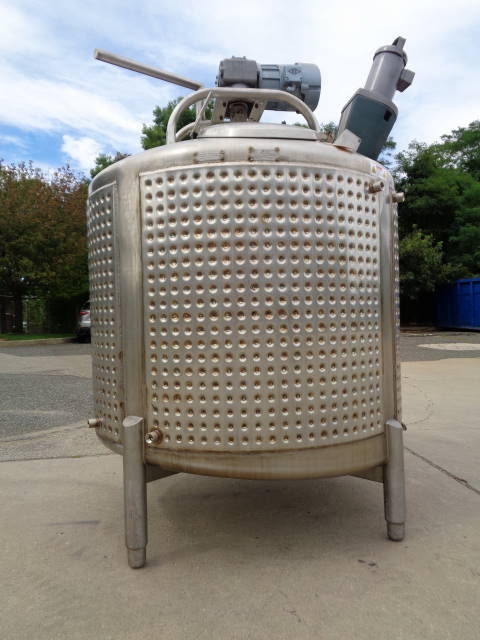

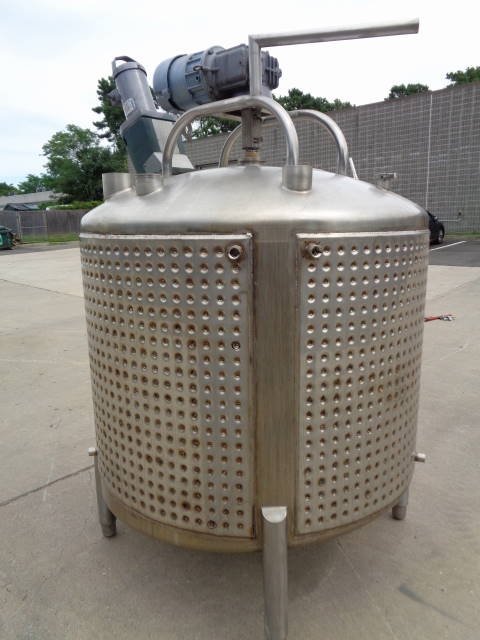

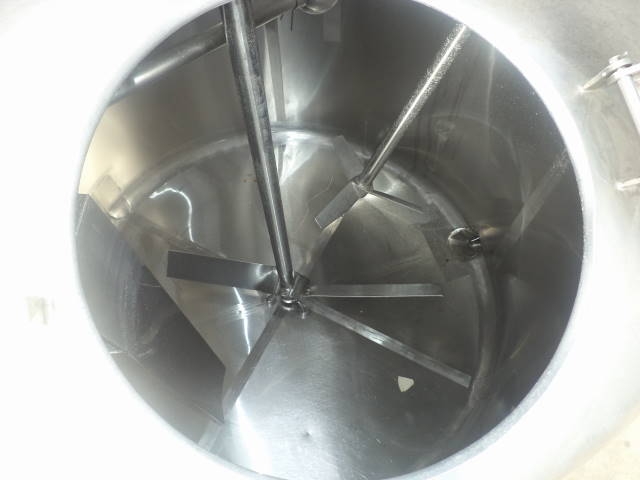

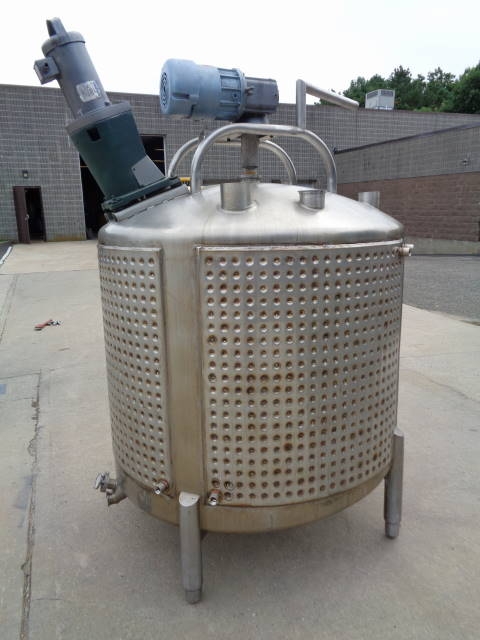

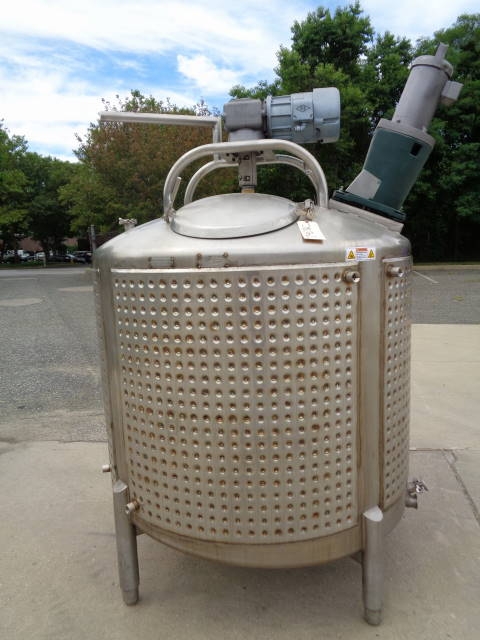

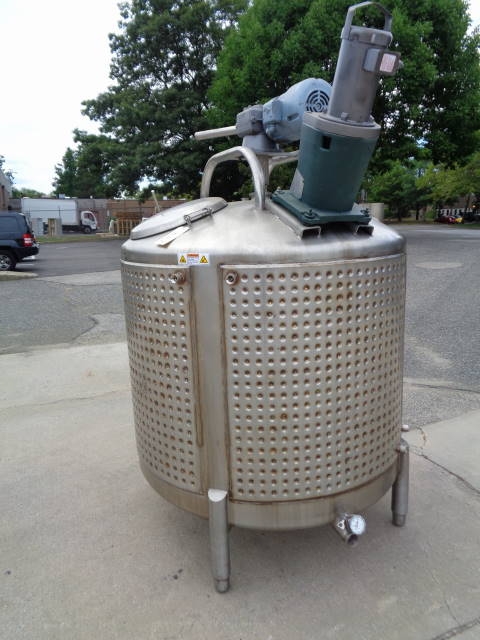

1-Used DCI 500 Gallon 316 Stainless Steel Dimpled Jacketed Vertical Mix Tank, S/N 82D-18699-D.  Dimensions approx. 62 in. diameter X 48 in. on the straight side plus dished top and sloped bottom.  Dished top has approx. 19 in. diameter off center manway with lid.  Equipped with twin CIP sprayballs and stationary baffle.  Tank top mounted 1/2 HP motor for bottom sweep agitation, as well as top entering pitch bladed agitator driven by Lightnin 2.3 HP 3/60/208-230-460 volt motor.  On stainless steel  legs, Vessel has sloped bottom with discharge outlets.  One outlet with Thermowell with gauge and the other outlet with 3 in. discharge reduced to 2 in. diameter discharge with hand operated valve.   (Stock #7928C)

Specifications

  • Capacity/Model: 500 Gallon
  • Brand: DCI
  • Stock #: 7928C
