50 Gallon Cherry Burrell 316SS Mix Kettle/Reactor, Tilt Out Agitation

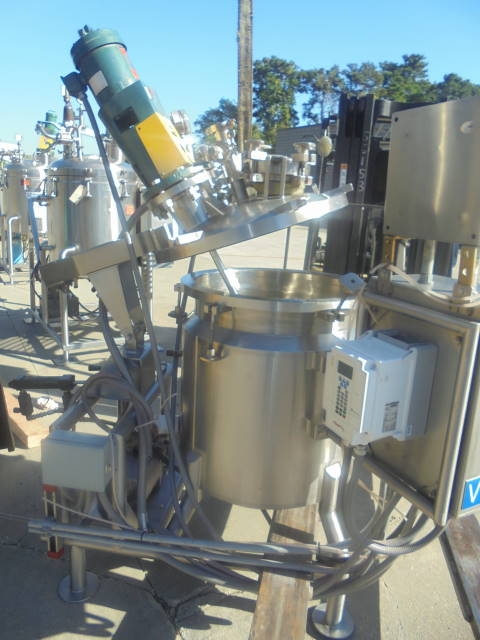

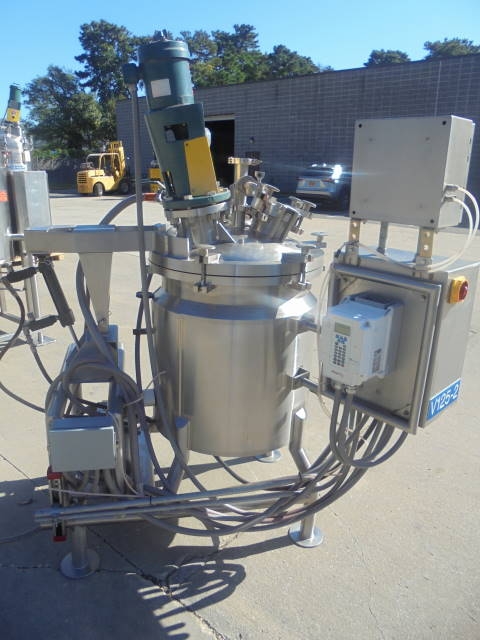

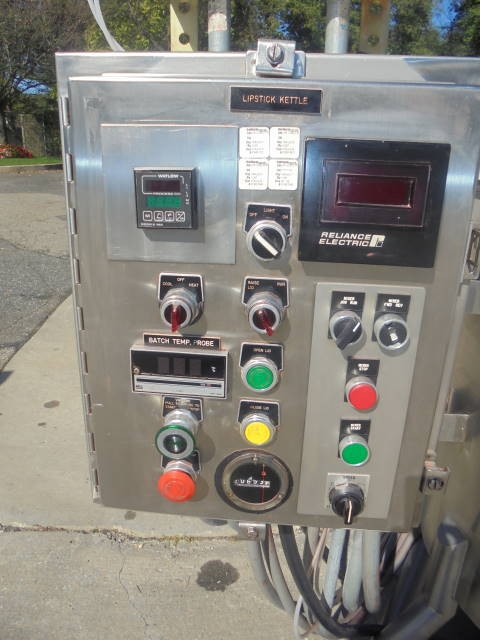

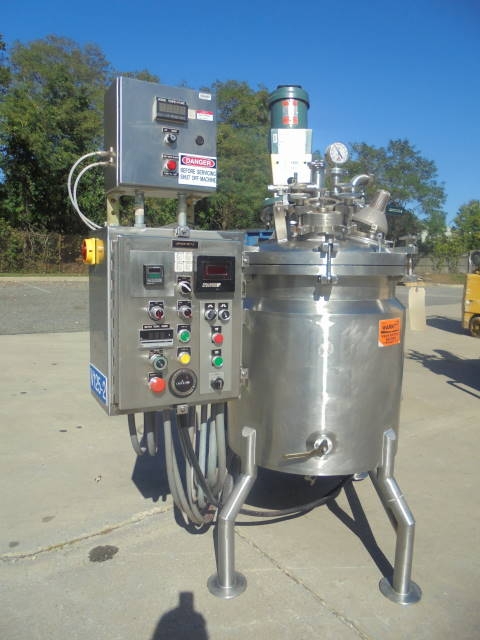

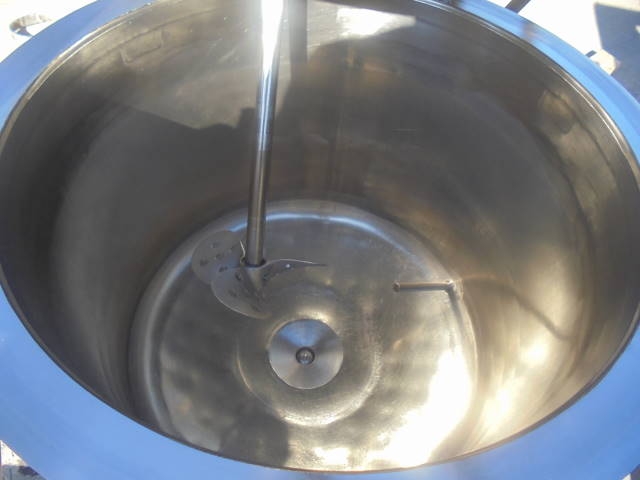

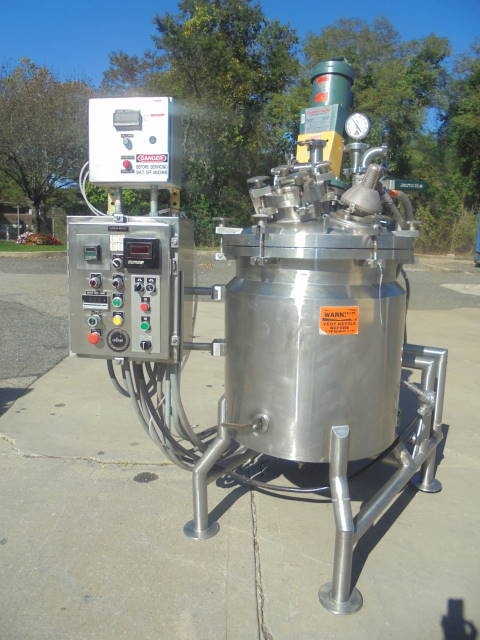

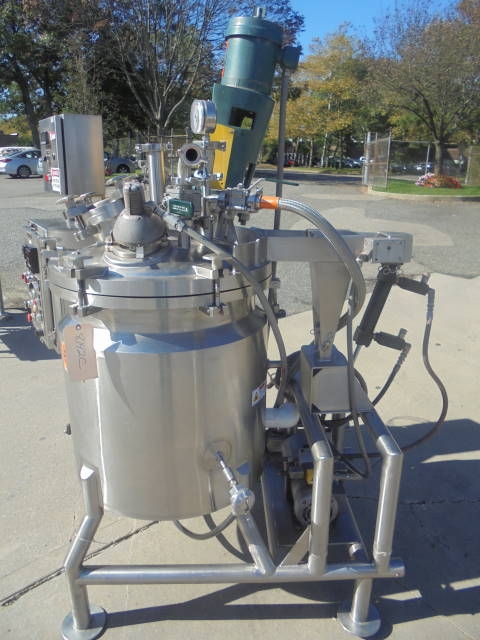

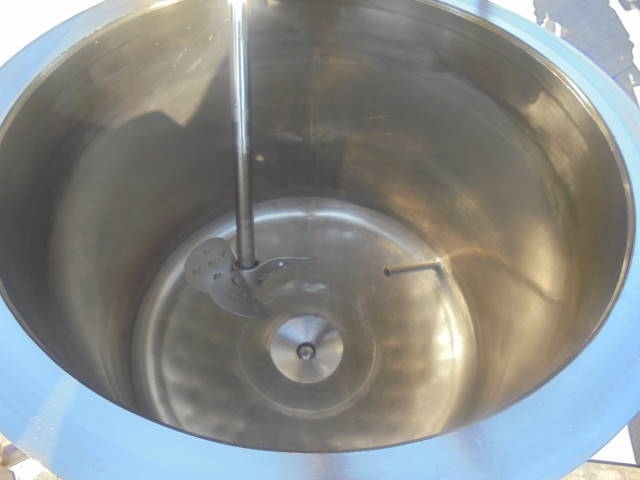

1-Used Cherry Burrell Approx. 50 Gallon Type 316 Stainless Steel Jacketed Pressurized Mix Kettle/Reactor, S/N 85E-254-1. Interior dimensions approx. 24 In. Diameter x 29 In. deep, plus dished bolted top head.  Rated maximum working pressure internal 15PSI at 320 Deg. F., maximum external working pressure 15PSI @320 Deg. F., and jacket 75PSI at 320 Deg. F., National Board #2606, code stamped.  Equipped with propeller agitation, driven by Lightnin XJC .30HP 3/50-60/208-220/440 Volt agitator drive.  With hydraulic cylinder and Delta Power self-contained hydraulic motor for automatic tilt-out of agitator assembly.  With stainless control panel with agitator speed control, there is a separate panel for digital temperature readout display.  Top head has assorted inlets including light instrument, vessel has Power Flex 70 variable frequency drive and bottom center approx. 1-1/2 in. diameter discharge outlet with valve. (Stock #8142C)


  • Capacity/Model: 50 GALLON
  • Stock #: 8142C
