200 Gallon Waukesha Cherry Burrell SS Mix Kettle, 125 PSI Jacket

Add to Favorites

Description

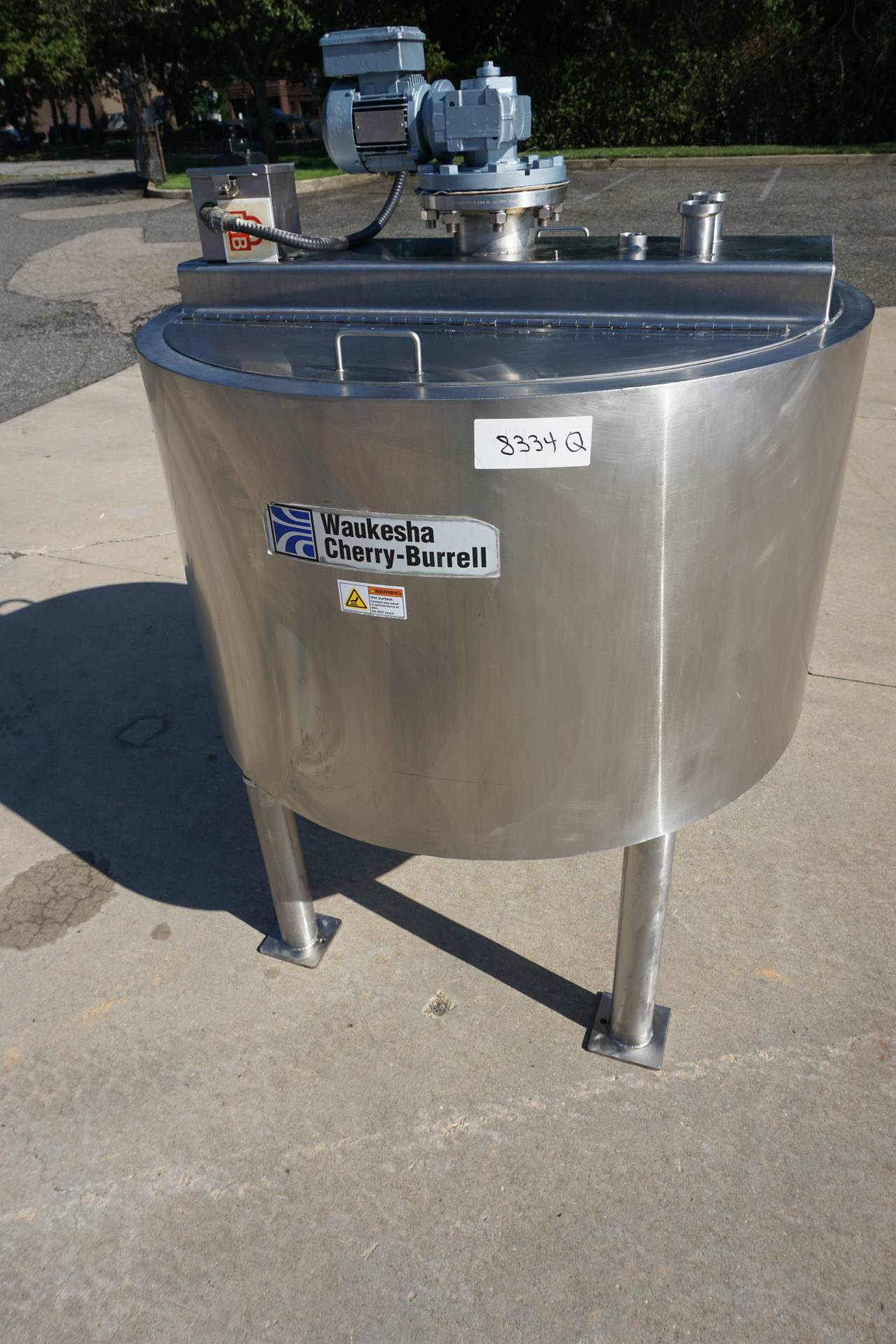

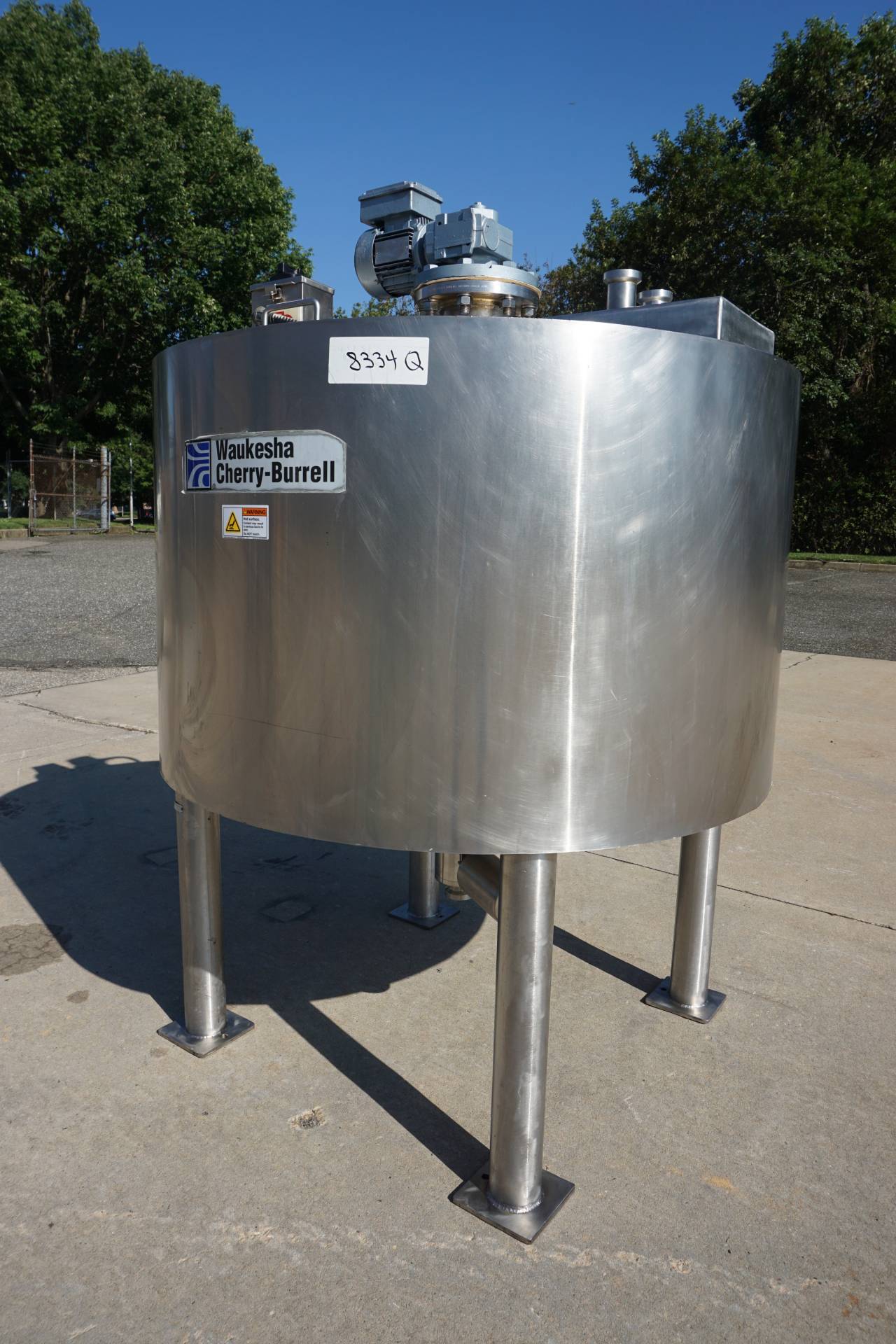

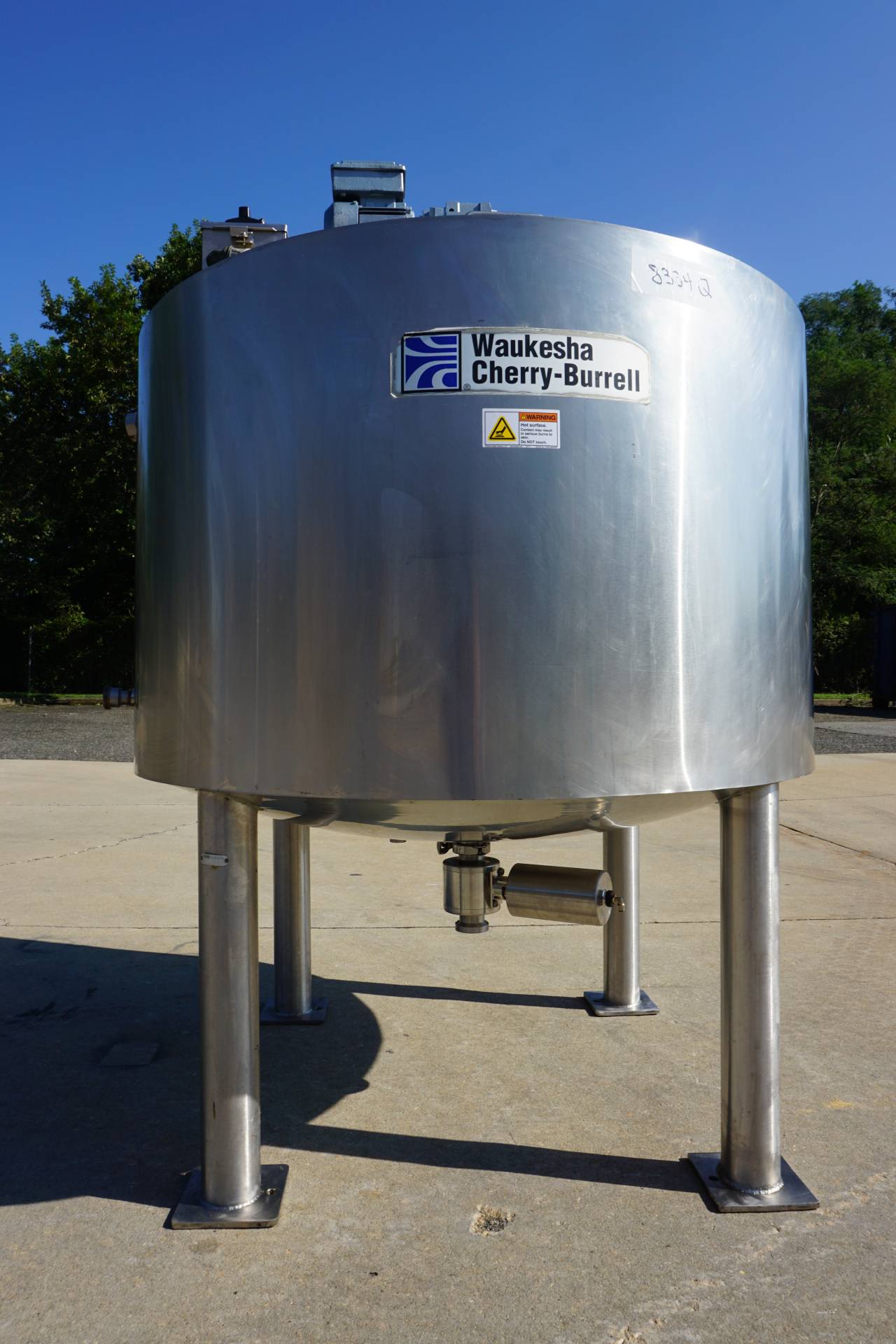

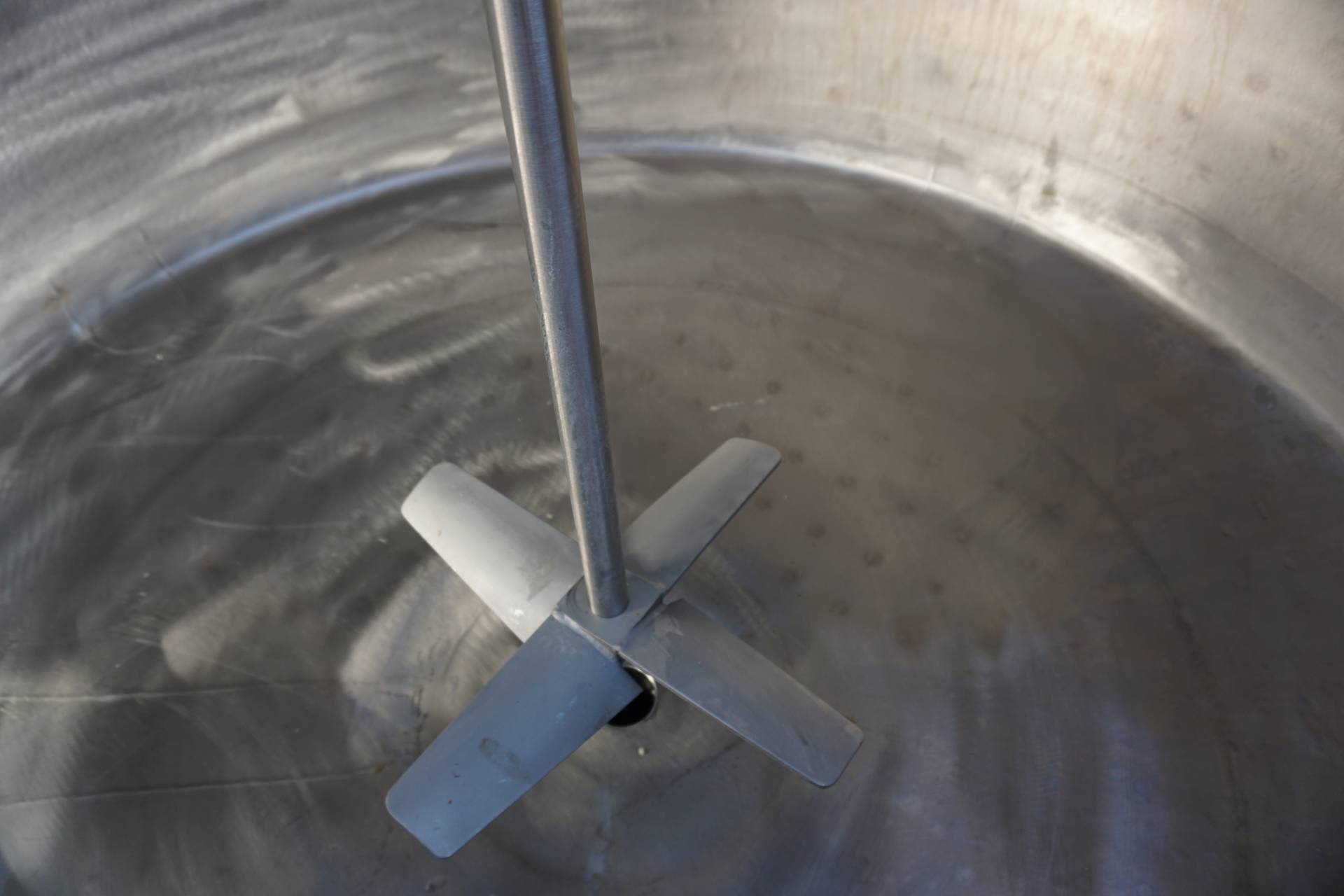

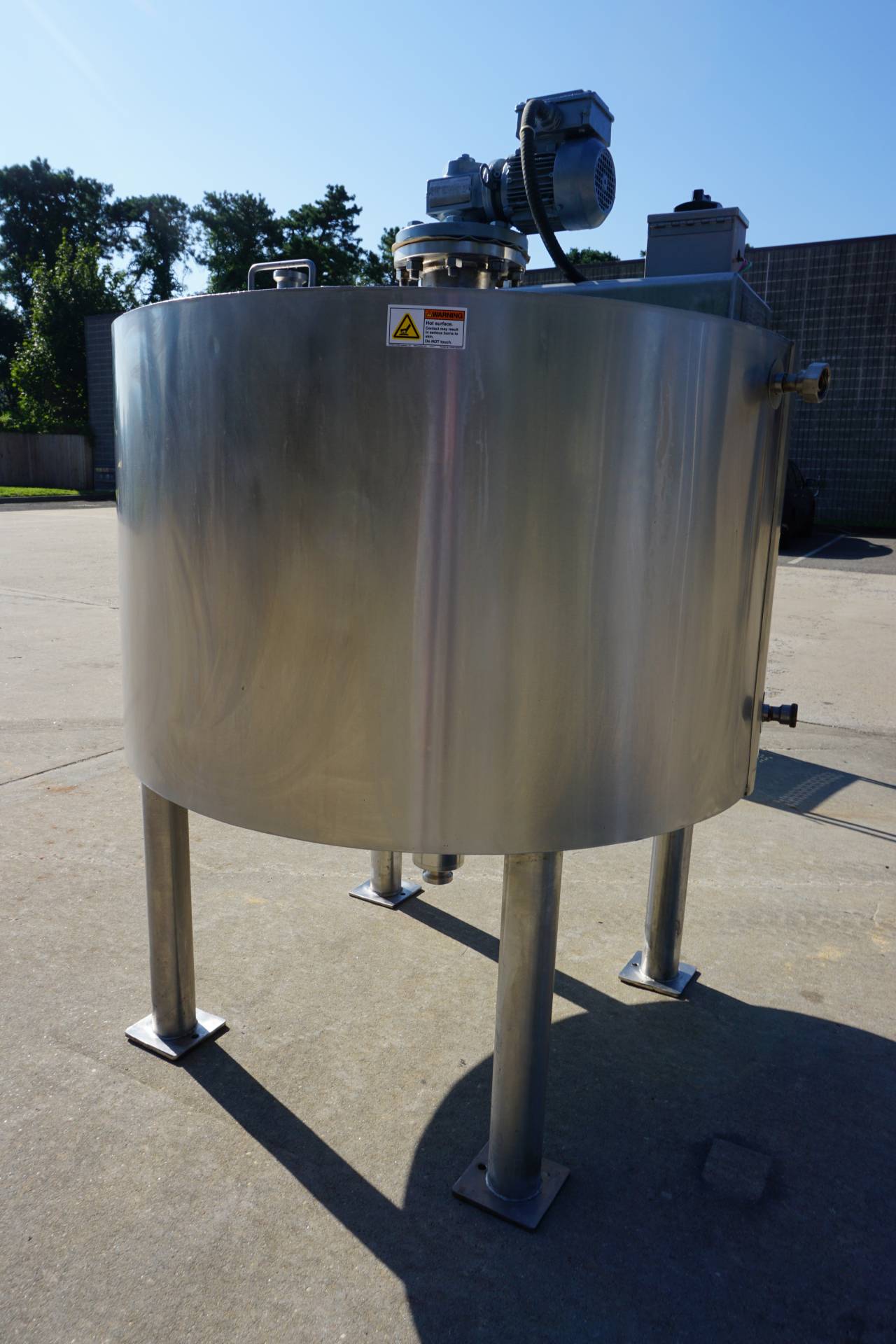

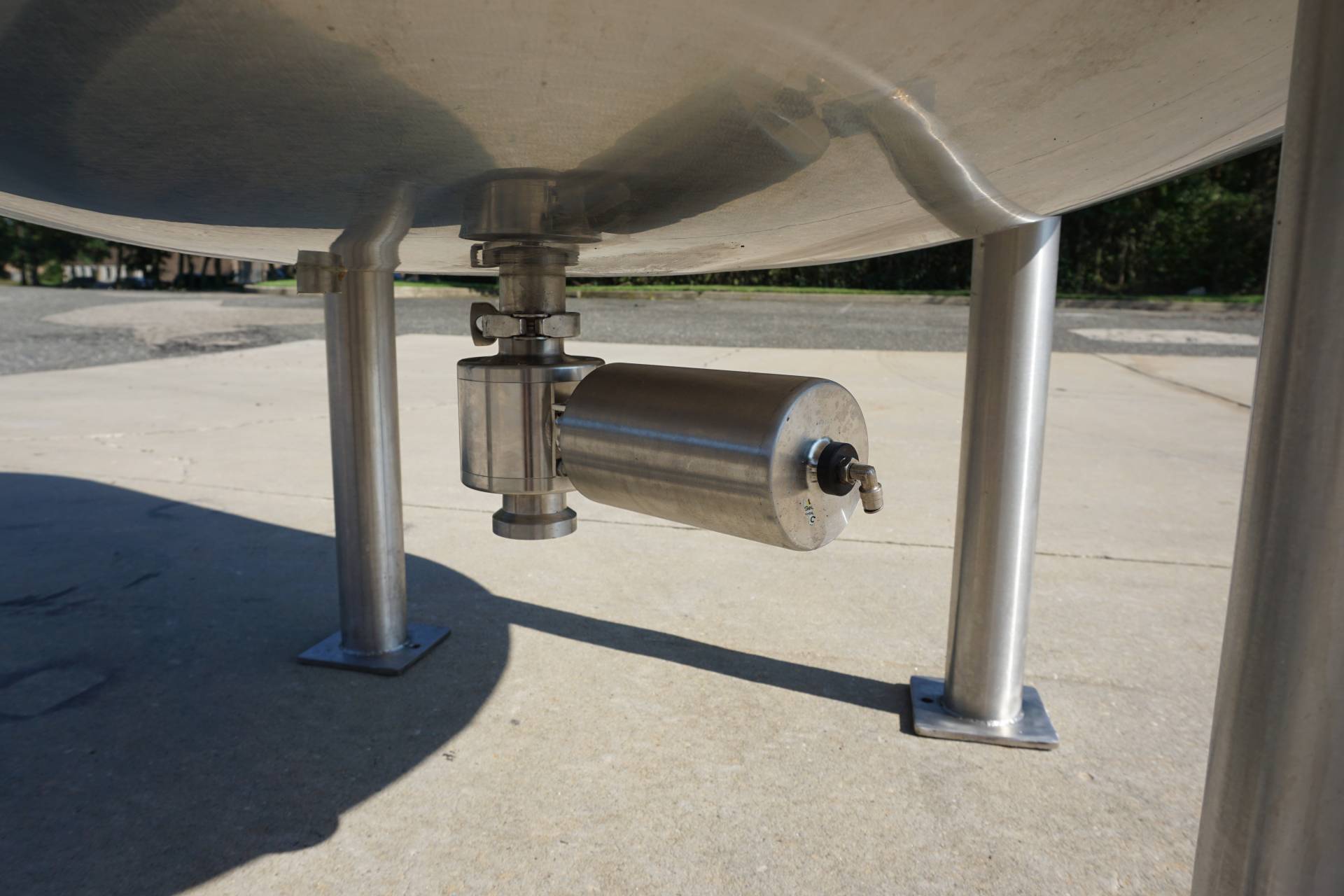

1-Used Waukesha Cherry Burrell Approx. 200 Gallon Stainless Steel Jacketed Mixing Kettle, S/N STAPRO-900.  Interior dimensions approx. 46 In. diameter X 30 In. on the straight side plus dished bottom head.  Vessel is both side and bottom jacketed and rated at 125PSI.  Vessel has approx. 20 In. Wide pitched bladed agitator.  On stainless steel legs, there is approx. 1 ½ In. diameter center bottom outlet with air operated valve. Agitator driven by SEW-Eurodrive top mounted electric motor. (Stock #8334Q)

Specifications

  • Capacity/Model: 200 GALLON APPROX
  • Brand: WAUKESHA/CHERRY BURRELL
  • Stock #: 8334Q
