200 Gallon Lee Double Motion “INA” Mix Kettle, 316 Stainless Steel

Add to Favorites

Description

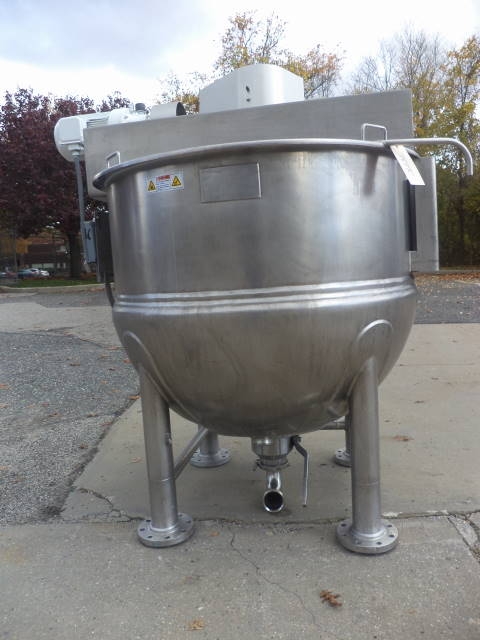

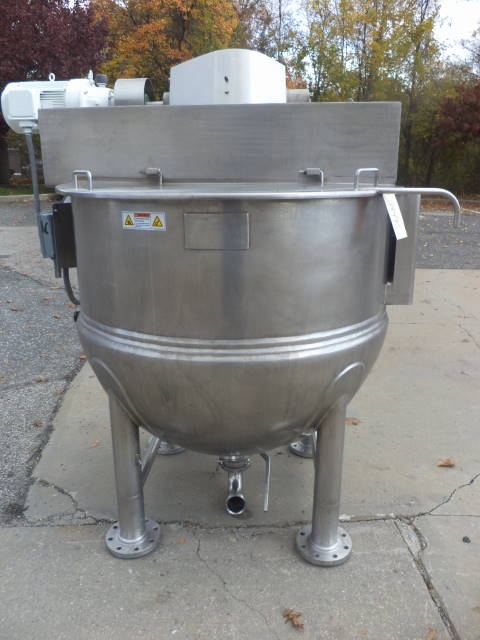

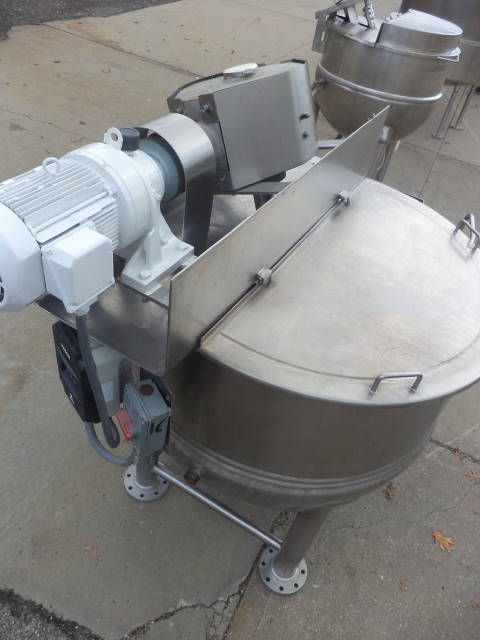

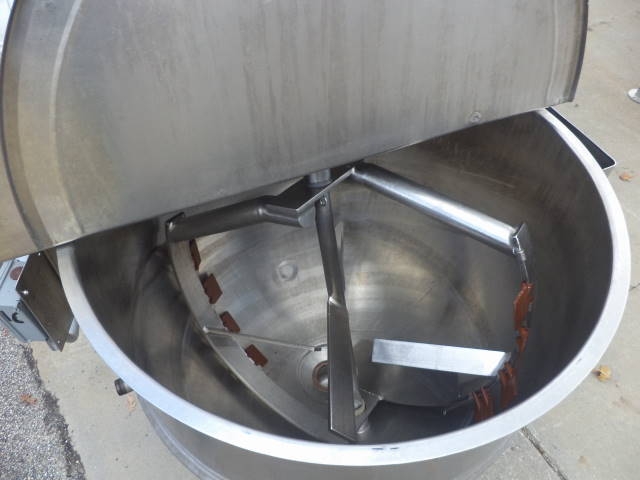

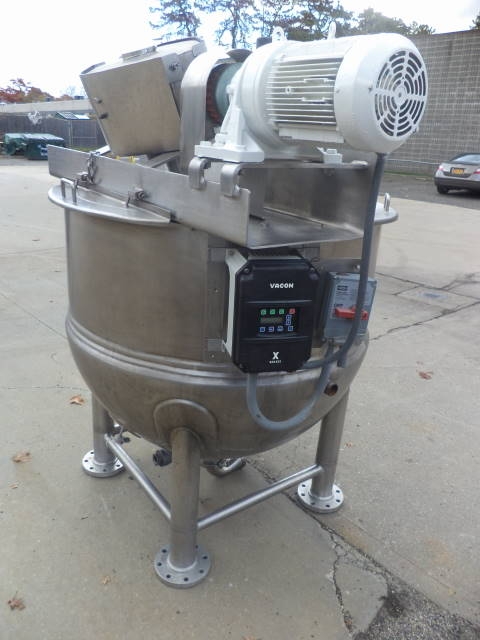

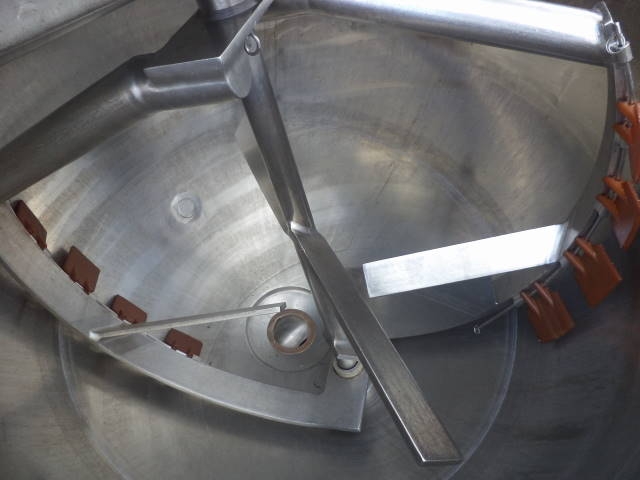

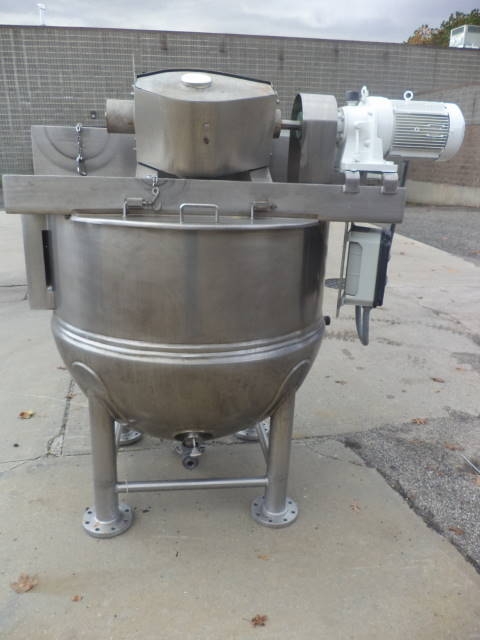

1-Used Lee 200 Gallon Type 316 Stainless Steel Jacketed Double Motion Mix Kettle with “INA”  Inclined Agitation Model 200D9MS, S/N 28538-1-2.  Dimensions approx. 48 in. diameter X 43 in. deep, Kettle is jacketed for 90 PSI @332 degrees F, National Board #9460, Code Stamped.  Double motion scraper agitator driven by 4 HP, 3/60/230-460 volt motor.  Equipped with approx. 29 in. stainless steel legs and approx. 3 in. diameter “Fluid Flow” discharge valve with 90 degree elbow.  Equipped with “Vacon X Series” variable frequency digital drive and Hubbell “Circuit-Lock” disconnect switch.   With stainless steel lid.  (Stock #7849C)

Specifications

  • Capacity/Model: 200 Gallon
  • Brand: LEE
  • Stock #: 7849C
