12 Gallon Lee 316 SS Double Motion Mixing kettle, Tilt-Out Agitation

Add to Favorites

Description

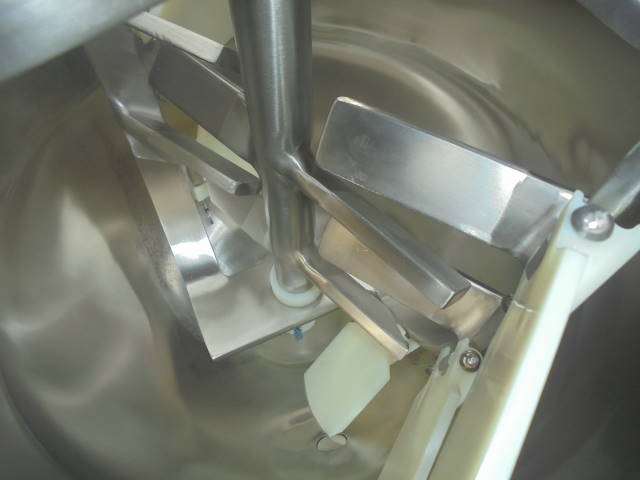

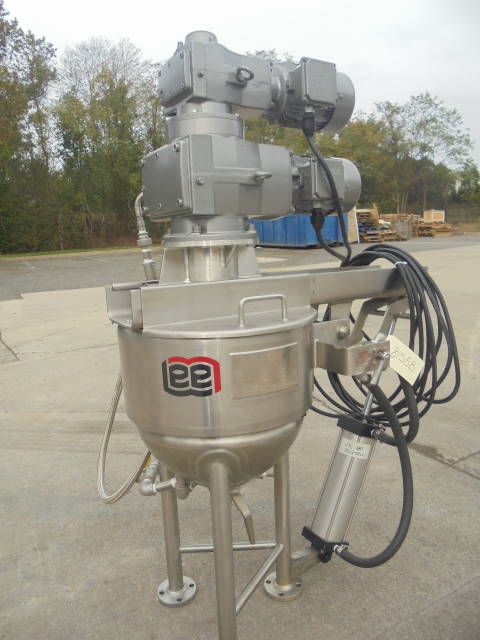

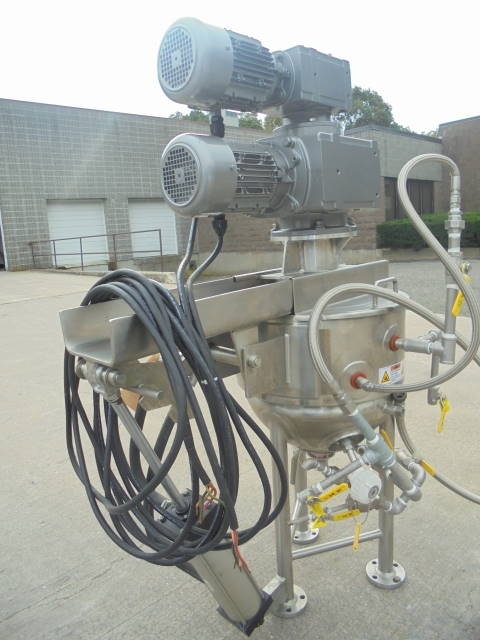

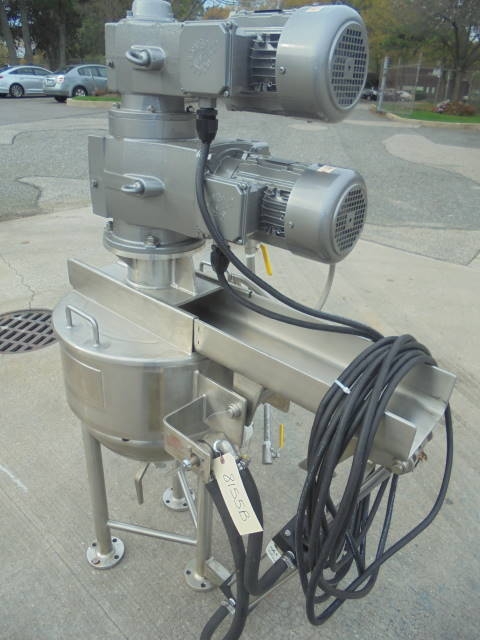

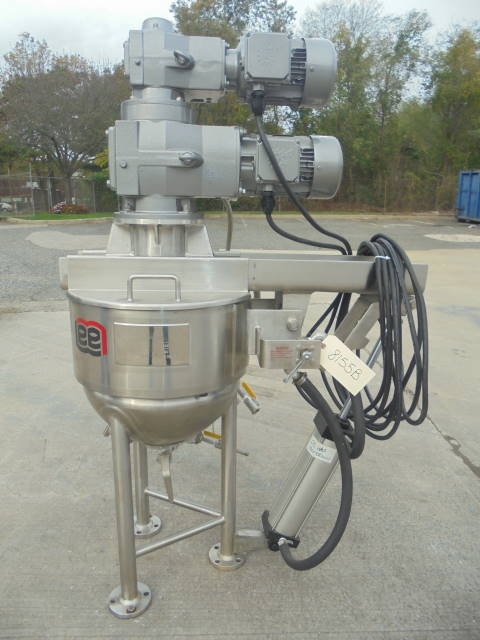

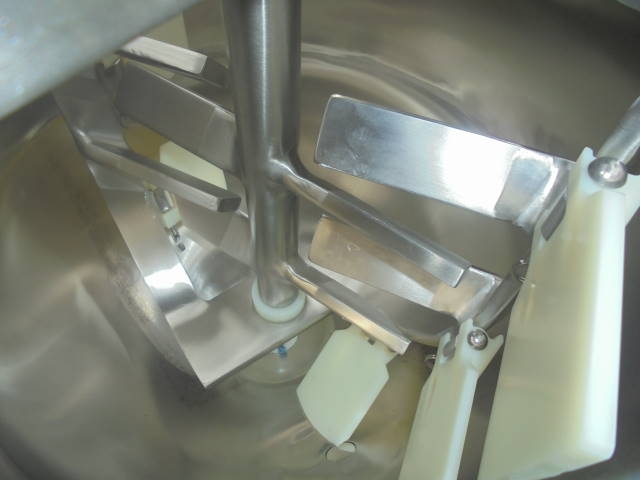

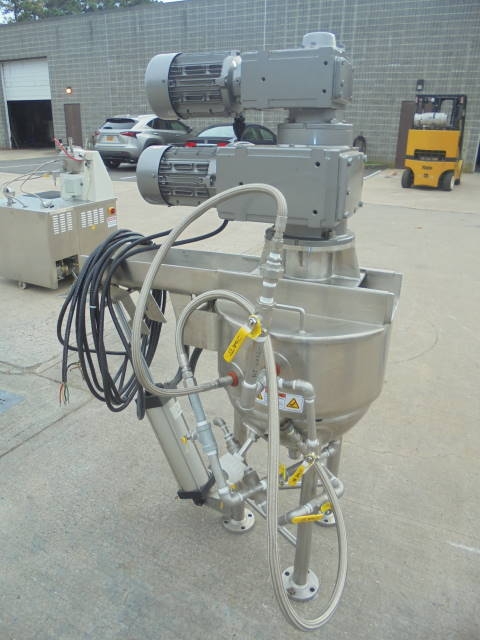

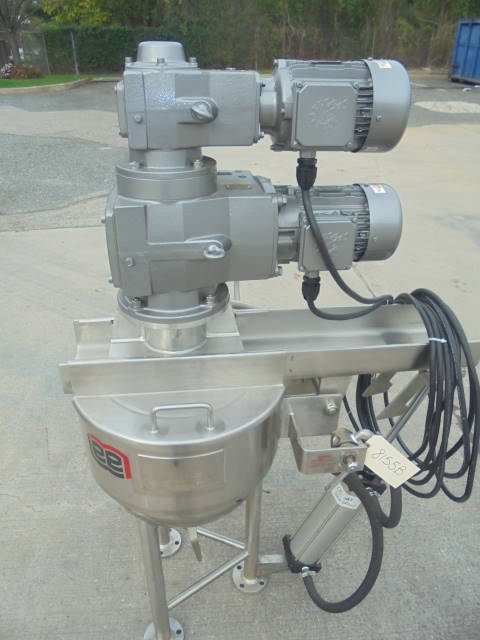

1-Used Lee 12 Gallon Type 316 Stainless Steel Jacketed Double Motion Mixing Kettle, Model 12D9MT, S/N 71152-1.  Kettle Dimensions approx. 18 in. diameter x 16 in. deep, kettle is equipped with double motion scraper agitator.  Equipped with two-zone jacket, with rating 90PSI at 332 Deg. F., code stamped.  Equipped with 2HP and 1.5HP “piggy back” motors, each 3/60/230-460 Volt.  Equipped with water actuated cylinder for tilt-out of entire agitation assembly.   Kettle mounted on approx. 25 in. high stainless steel legs and has center bottom discharge with Lee “fluid-flow” hand operated ball valve.  With two piece hinged lid, kettle has Pyromation thermowell for temperature control.  (Stock #8155B)

Specifications

  • Capacity/Model: 12 Gallon
  • Brand: LEE
  • Stock #: 8155B
