1,000 Gallon Stainless Jacketed Agitated Closed Tank

Add to Favorites

Description

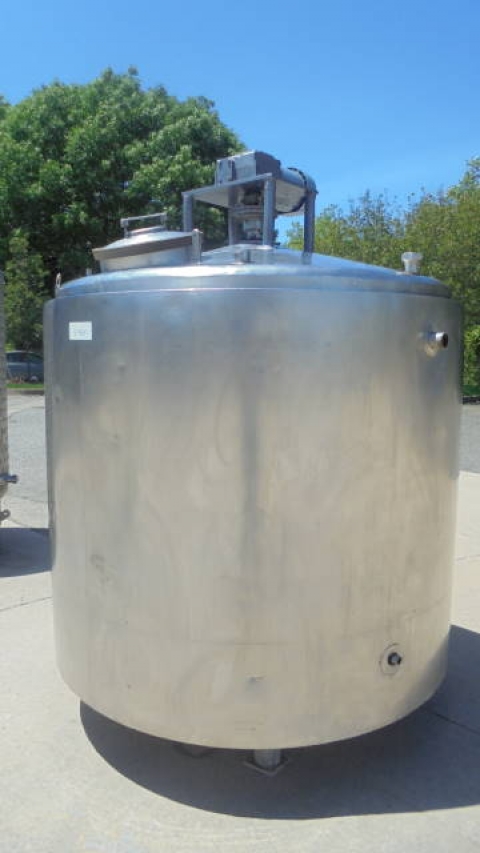

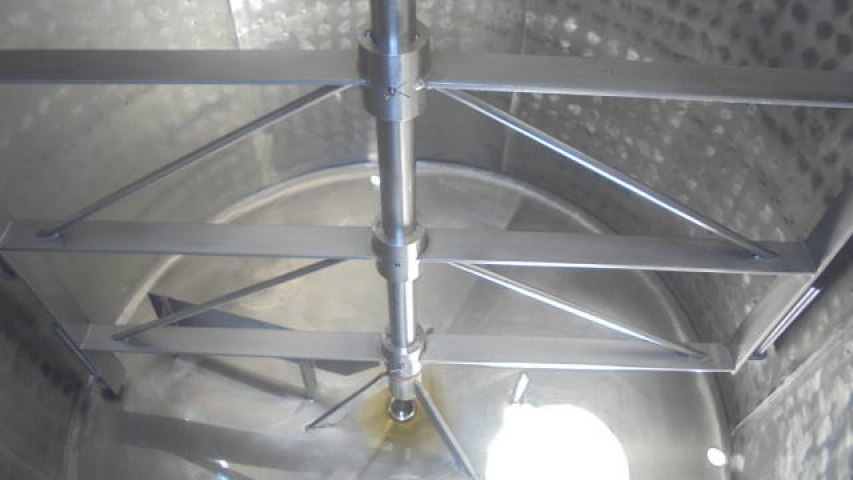

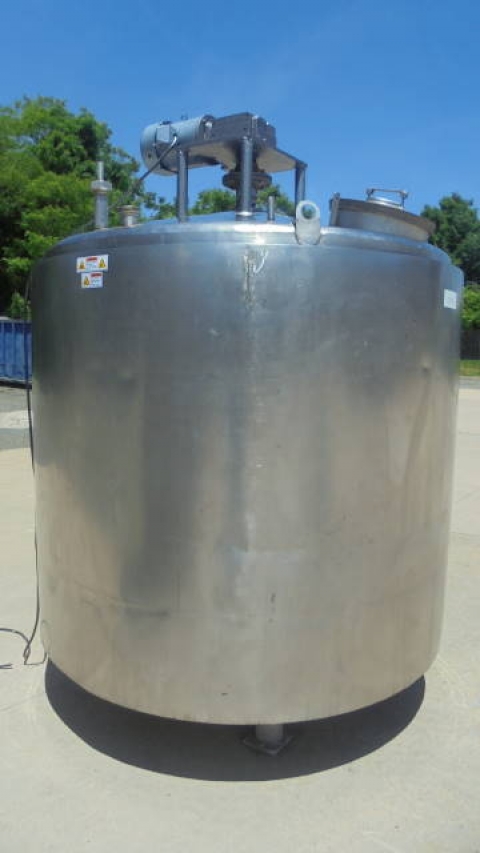

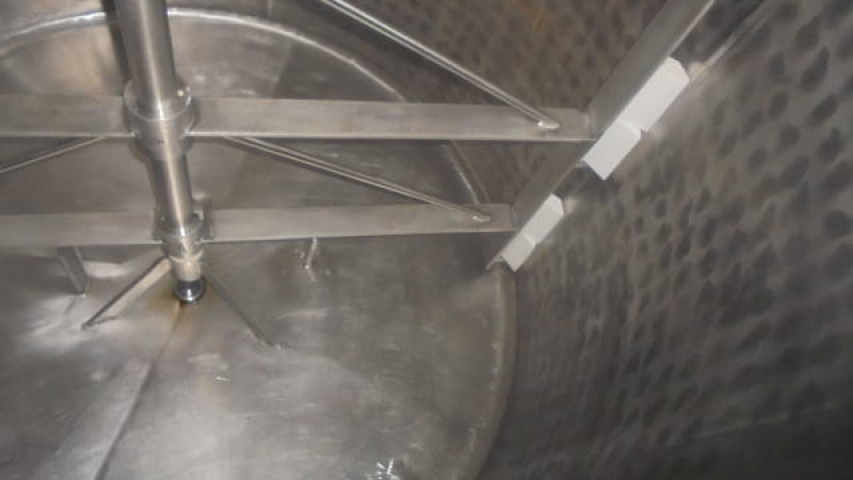

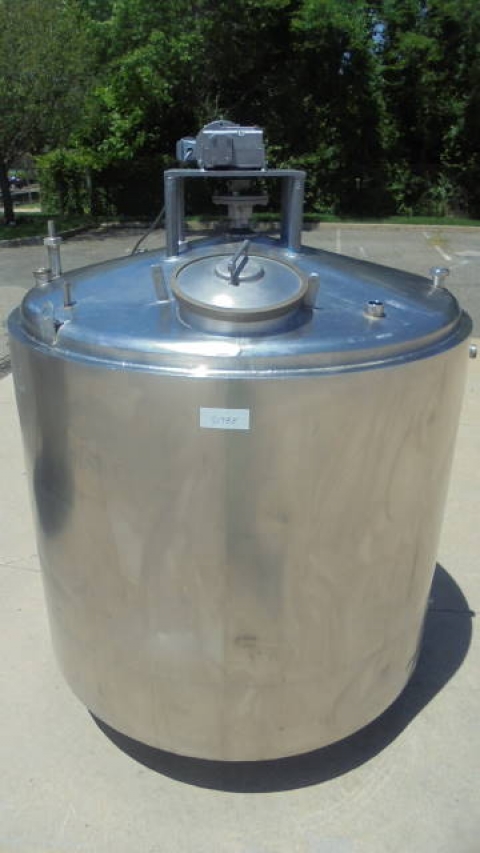

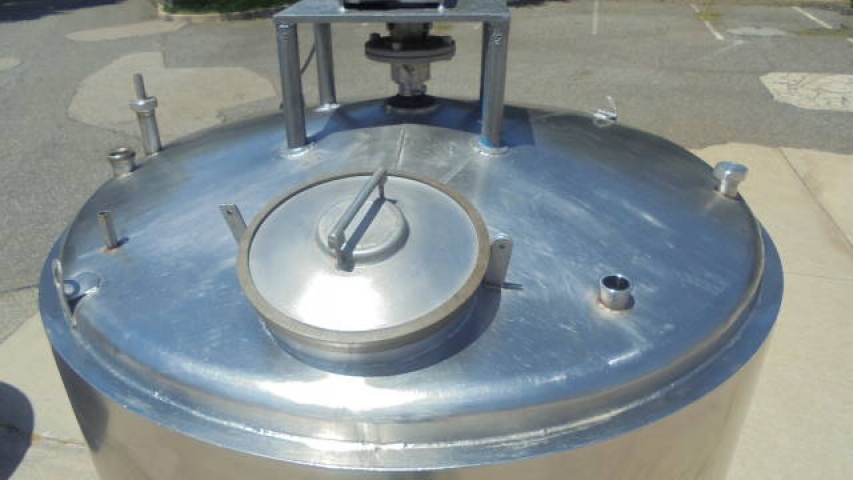

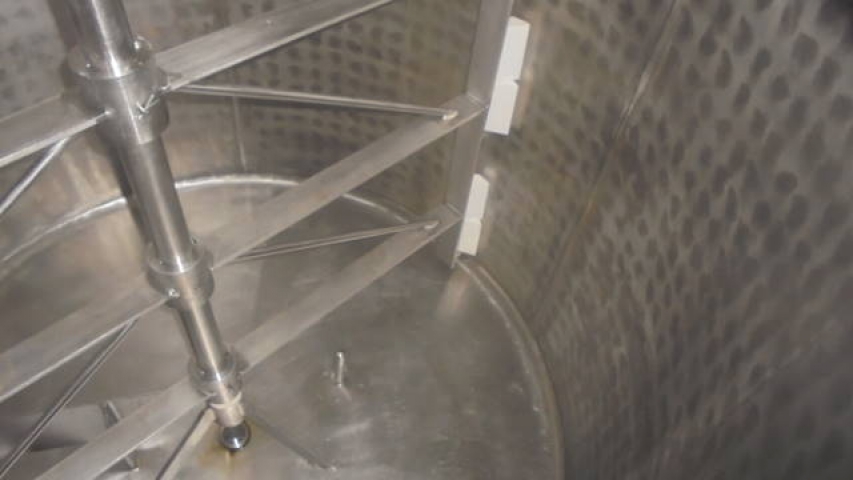

1-Used Approximately 1,000 Gallon Stainless Steel Jacketed Closed Agitated Tank.  Last used in the pharmaceutical industry, interior dimensions approx. 74 In. diameter X 70 In. deep.  With slight cone top, tank has frame type agitation with provision for side scraping (scraper blades currently not included). Driven by 3 HP, 3/60/230-460 Volt motor, vessel has dimple jacket covered with stainless shrouding and top head has 16 In. diameter off center manway with lid.  Equipped with approx. 3 In. diameter center bottom outlet with 90 degree elbow reduction.  (Stock #8198E)

Specifications

  • Capacity/Model: 1,000 Gallon
  • Stock #: 8198E
