1,000 GALLON FELDMEIER 316L PRESSURIZED VACUUM JACKETED AGITATED VESSEL REACTOR

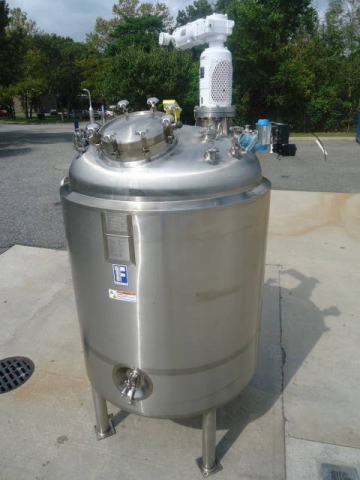

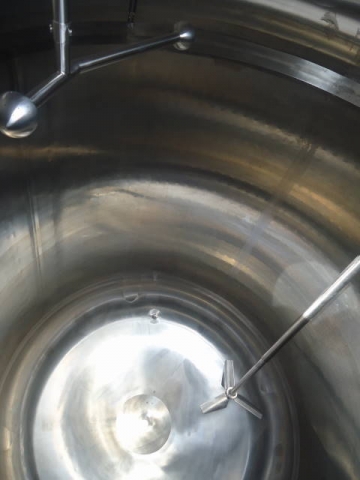

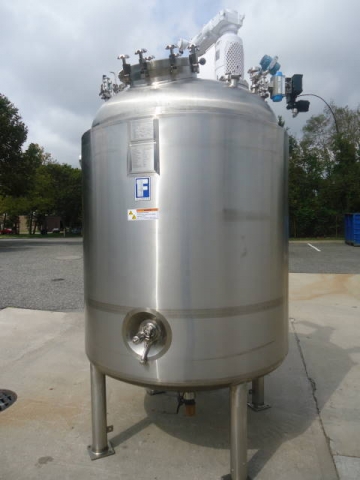

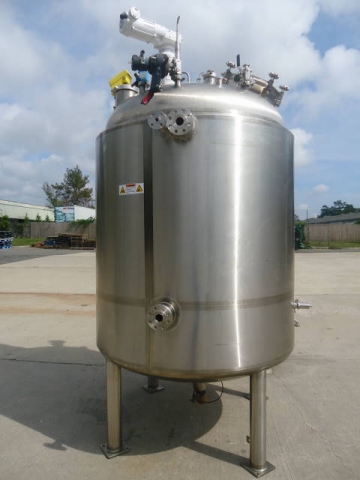

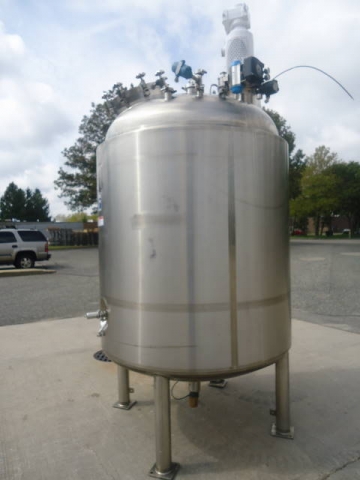

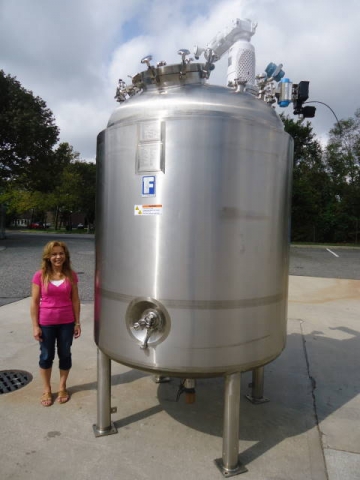

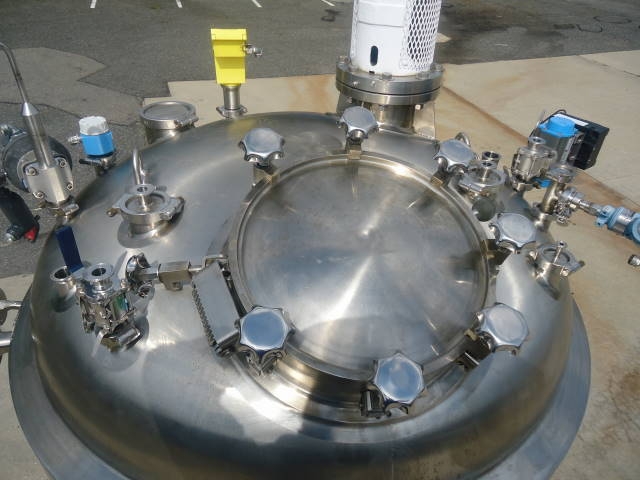

1-USED FELDMEIER 1,000 GALLON TYPE 316L STAINLESS STEEL JACKETED VACUUM MIX VESSEL/REACTOR, S/N S53802.  INTERNAL DIMENSIONS APPROX. 60 IN. DIAMETER X 77 IN. ON THE STRAIGHT SIDE PLUS DISHED TOP AND BOTTOM HEADS.  VESSEL RATED 100 PSI AND FULL VACUUM @ 450 DEGREES F INTERNALLY AND JACKETED FOR 150 PSI  @ 450 DEGREES F, NATIONAL BOARD # 2742, CODE STAMPED.  WITH RELIANCE ELECTRIC 1.5 HP EXPLOSION PROOF MOTOR WITH CHEMINEER REDUCER TO DRIVE THE 16 IN. DIAMETER STAINLESS STEEL PITCHED BLADED AGITATOR.  TOP HEAD HAS APPROX. 18 IN. DIAMETER MANWAY WITH HINGED LID WITH QUICK OPENING BOLTS AND TWELVE (12) ASSORTED TOP INLETS AND APPROX. 16 IN. DIAMETER X 26 IN. HIGH STAINLESS STEEL TUBULAR LEGS.  VESSEL HAS APPROX. 3 IN. DIAMETER CENTER DISCHARGE OUTLET WITH ELECTRIC AIR VALVE AND ACCESSORY SIDE DISCHARGE.  INCLUDES TEMPERATURE PROBE, TWO (2) CIP SPRAY BALLS AND NUMEROUS DESIRABLE FEATURES.  (STOCK # 7518)


Item number: 7518
Capacity/Model: 1,000 GALLON
Brand: FELDMEIER
