Spiroflow Orthos Flexible Screw Conveyor/Feeder, 12 Ft. Long Stainless Screw

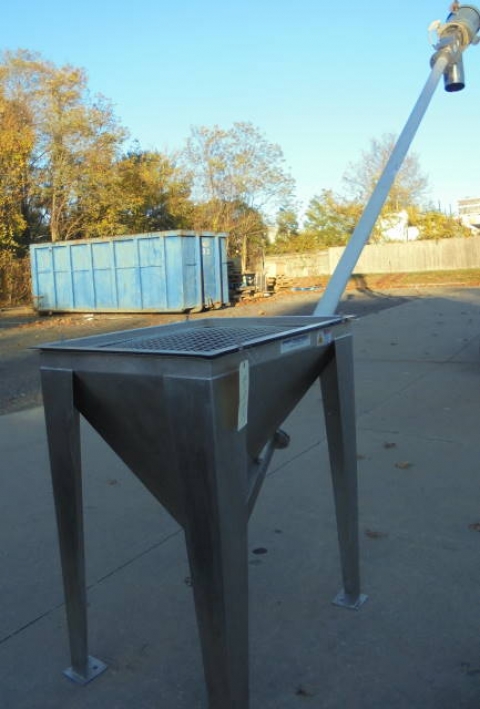

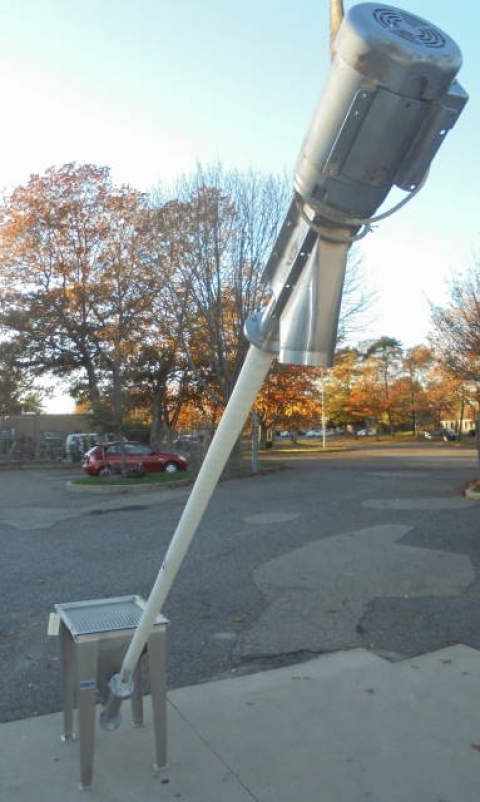

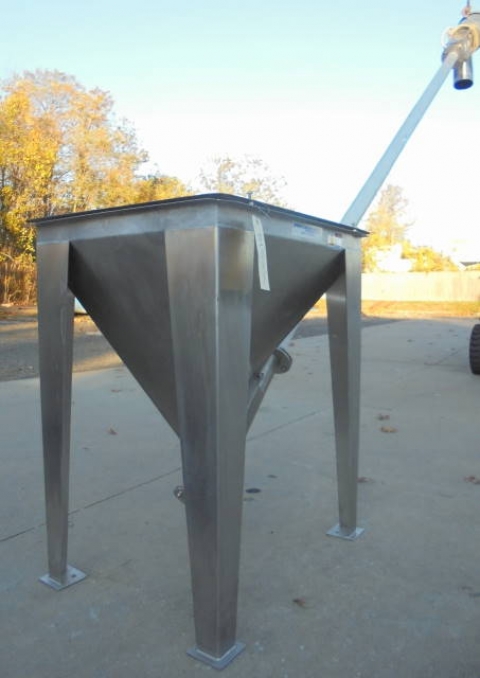

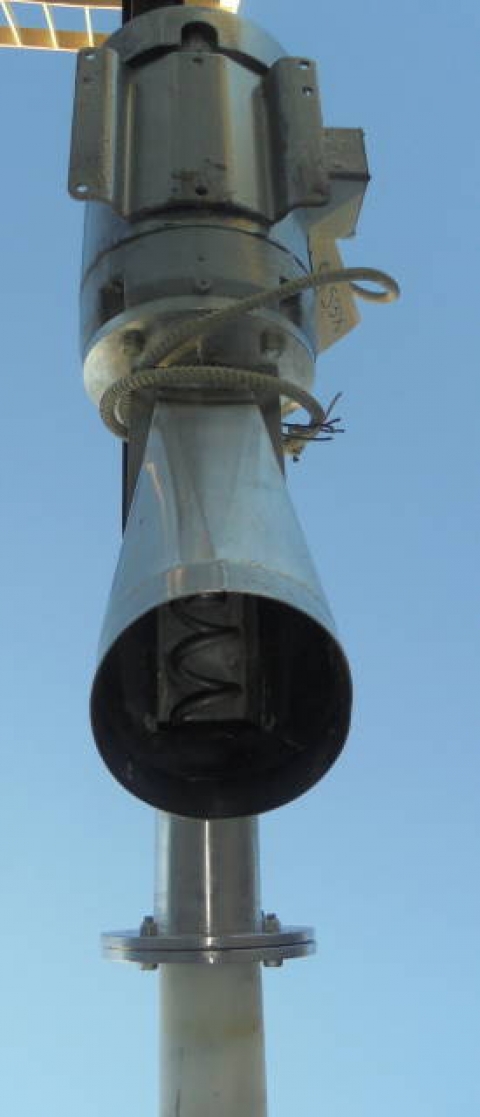

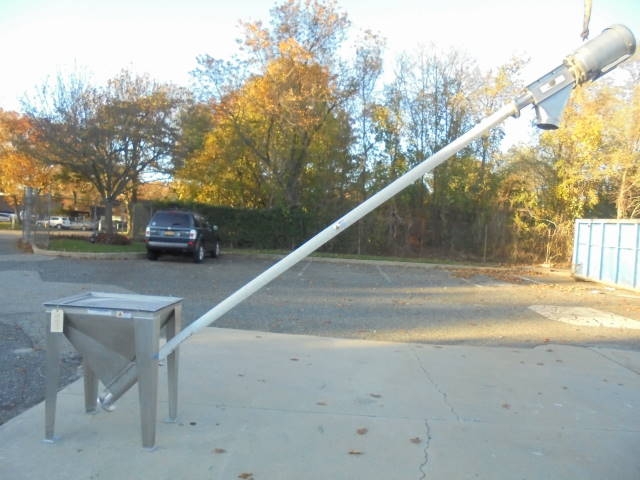

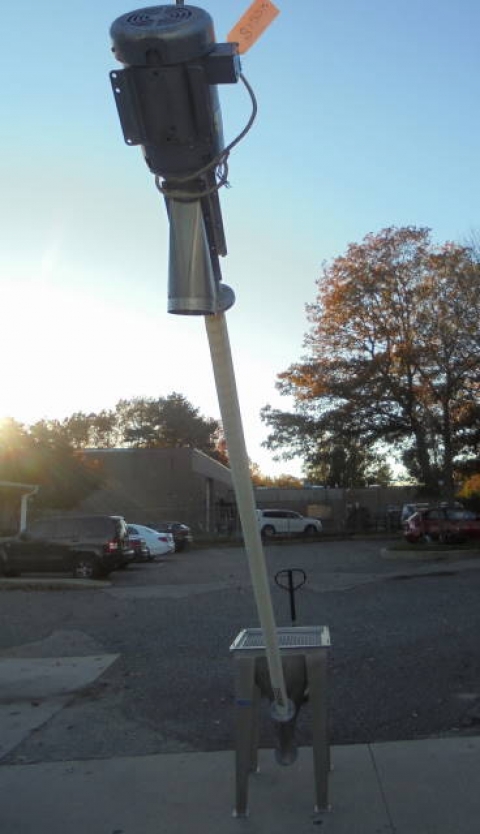

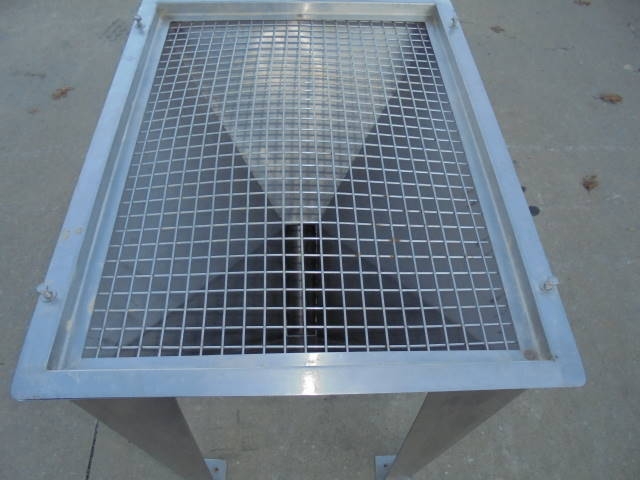

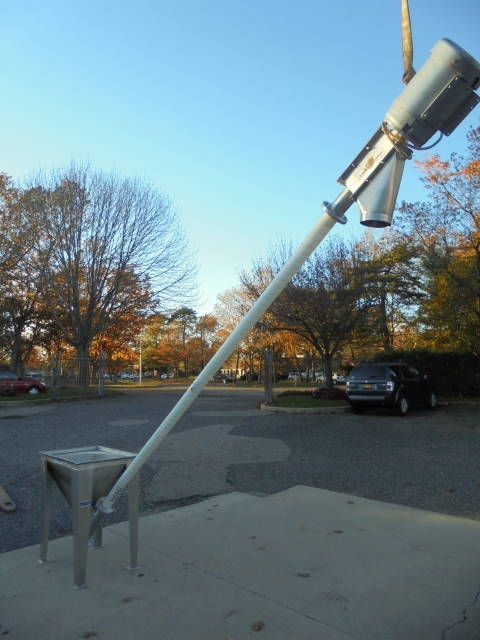

1-Used Spiroflow-Orthos Flexible Screw Conveying System, Model 318-B10, serial 705009.  Equipped with stainless steel flexible helix, measuring approx. 2-1/2 in. diameter x 142 in. Long.  Supplied with 3 in. diameter plastic outer flexible housing, system has 23 in. x 26 in. stainless steel floor hopper with safety grate.  Driven by 3HP, 3/60/208-230/460 Volt Motor and Fuji Electric Model AF-300G11 variable speed drive for variable speed operation. Bottom discharge has 6 inch diameter chute.  (Stock # 8153X)

Item number: 8153X
Capacity/Model: Flexible Screw Feeder
